Binary counters are fundamental components in digital electronics, essential for counting events, generating timing sequences, and dividing frequencies. They form the backbone of applications ranging from simple timers to complex microprocessors. This guide explores the principles, types, design, and applications of binary counters, providing a thorough understanding of their operation and implementation.

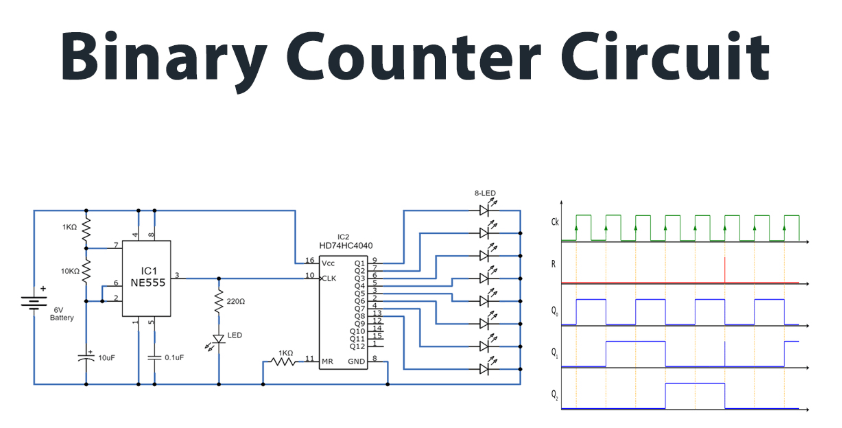

Basics of Binary Counters

A binary counter is a sequential logic circuit that progresses through a predefined sequence of binary states upon receiving clock pulses. Constructed using flip-flops (typically D, JK, or T types), counters increment (up) or decrement (down) their stored value. Key concepts include:

• Binary Counting: Represents numbers in base-2, using bits (0 or 1). An n-bit counter can count from 0 to $2^n?1$.

• Flip-Flops: Serve as memory elements. Toggle (T) flip-flops are commonly used due to their simplicity in toggling states with each clock pulse.

Types of Binary Counters

1. Asynchronous (Ripple) Counters

• Operation: Each flip-flop triggers the next in sequence, creating a "ripple" effect. The clock signal propagates through stages, leading to cumulative propagation delays.

• Design Example: A 3-bit ripple up-counter uses T flip-flops, where the output of one stage clocks the next. The counting sequence is 000, 001, 010, ..., 111.

• Pros: Simple design, low component count.

• Cons: Propagation delays cause glitches, limiting high-speed applications.

2. Synchronous Counters

• Operation: All flip-flops share the same clock signal, changing state simultaneously. Logic gates determine when each stage toggles.

• Design Example: A 3-bit synchronous up-counter uses T flip-flops with AND gates. The first stage toggles every clock cycle; subsequent stages toggle only if all prior bits are HIGH.

• Pros: No cumulative delays; suitable for high-speed operations.

• Cons: More complex due to added logic gates.

3. Up vs. Down Counters

• Up Counters: Increment values (0 to $2^n?1$).

• Down Counters: Decrement values ($2^n?1$ to 0).

• Control Logic: Up/down functionality is achieved using XOR/AND gates to steer the count direction based on a control input.

4. Modulus (Mod) Counters

• Definition: Resets after reaching a specific value (modulus). For example, a Mod-10 counter cycles 0–9.

• Design: Combinational logic detects the terminal count (e.g., 1010 for Mod-10) and resets the counter.

Design and Working Principles

Asynchronous Counter Design

• 4-Bit Example: Four T flip-flops connected in series. Each Q output clocks the next stage. The frequency at each stage halves, acting as a frequency divider.

• Timing Diagram: Displays ripple delays between transitions.

Synchronous Counter Design

• 4-Bit Example: All flip-flops clocked simultaneously. Toggle conditions:

• Bit 0: Toggles every clock cycle.

• Bit 1: Toggles if Bit 0 is HIGH.

• Bit 2: Toggles if Bits 0 and 1 are HIGH.

• Bit 3: Toggles if Bits 0, 1, and 2 are HIGH.

• Logic Gates: AND gates generate toggle signals for higher-order bits.

Modulo-N Counter Design

• Step 1: Choose modulus (e.g., Mod-6).

• Step 2: Detect terminal count (e.g., 0110) using an AND/NAND gate.

• Step 3: Reset counter or load initial value upon detection.

Applications

1. Frequency Division: Counters divide clock frequencies in communication systems.

2. Digital Clocks: Counters track seconds, minutes, and hours using Mod-60 and Mod-24 counters.

3. Event Counting: Industrial systems count products or pulses.

4. Pulse Width Modulation (PWM): Generate variable-duty-cycle signals for motor control.

5. Sequential Logic Circuits: Control state transitions in processors.

Troubleshooting Common Issues

• Glitches: Caused by propagation delays in asynchronous counters. Use synchronous designs for critical timing.

• Incorrect Counting: Check clock signals, power stability, and wiring. Verify reset logic in Mod-N counters.

• Setup/Hold Time Violations: Ensure flip-flops receive stable inputs before clock edges.

Advanced Concepts

1. Cascading Counters: Combine multiple counters (e.g., 74LS163) for extended ranges. Use carry-out signals to clock subsequent stages.

2. Programmable Counters: Load initial values via parallel inputs for flexible modulus.

3. BCD Counters: Mod-10 counters encoding decimal digits in 4-bit binary (e.g., 74LS90).

4. FPGA Implementation: Hardware description languages (VHDL/Verilog) model counters for programmable logic devices.

Conclusion

Binary counters are versatile tools in digital design, enabling precise control over timing and sequencing. Understanding their types—asynchronous vs. synchronous, up/down, and modulus—equips engineers to select optimal designs for applications ranging from consumer electronics to industrial systems. With advancements in integrated circuits and programmable logic, counters continue to evolve, underpinning modern digital innovation.

This guide provides a foundational yet comprehensive overview, ideal for students and professionals seeking to master binary counters in digital electronics.
