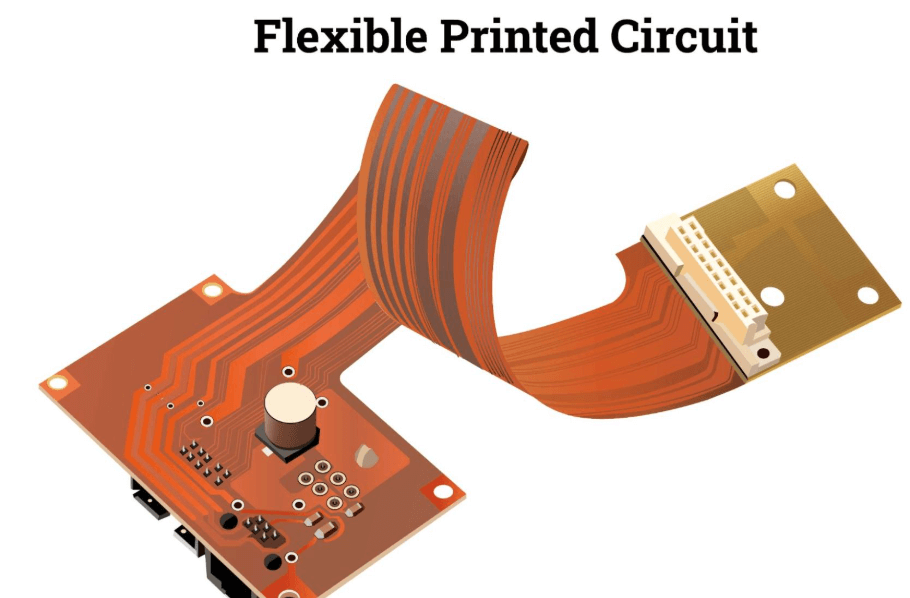

Flexible Printed Circuits (FPCs) are a specialized type of printed circuit board (PCB) designed to be highly adaptable, lightweight, and durable. Unlike traditional rigid PCBs, FPCs are constructed on flexible substrate materials, allowing them to bend, twist, and conform to complex shapes. This unique characteristic makes them indispensable in modern electronics where space constraints and dynamic movement are critical considerations. FPCs are widely used in industries ranging from consumer electronics to aerospace, driven by their ability to reduce weight, save space, and enhance reliability.

Structure and Materials

Core Components

1. Substrate Material:

• Polyimide (PI): The most common substrate due to its excellent thermal stability (withstanding temperatures up to 400°C), chemical resistance, and mechanical durability.

• Polyester (PET): Used in cost-sensitive applications but offers lower thermal resistance compared to PI.

2. Conductive Layer:

• Copper Foil: Typically used for traces, either rolled annealed (RA) or electro-deposited (ED). Adhesives or adhesiveless bonding methods attach copper to the substrate.

3. Coverlay:

• A protective layer (often polyimide) laminated over the circuitry to insulate and shield against environmental factors.

4. Stiffeners:

• Rigid materials like FR4 or PI added to specific areas to support component mounting and connectors.

Additional Elements

• Adhesives: Acrylic or epoxy-based; adhesiveless options reduce thickness and improve thermal performance.

• Surface Finishes: Electroless Nickel Immersion Gold (ENIG), Immersion Silver, or solder mask to protect copper and enhance solderability.

Manufacturing Process

1. Design and Prototyping:

• CAD software optimizes circuit layout, considering bend radius and mechanical stress.

2. Imaging and Etching:

• Photolithography transfers the circuit pattern onto the copper layer, followed by chemical etching to remove excess copper.

3. Drilling and Plating:

• Laser or mechanical drilling creates vias, which are plated with copper to establish interlayer connections.

4. Lamination and Coverlay Application:

• Layers are bonded using heat and pressure, and coverlays are applied for protection.

5. Surface Finishing and Testing:

• ENIG or solder mask applied. Rigorous testing includes electrical continuity, insulation resistance, and flexibility cycles.

Types of FPCs

• Single-Sided: Circuits on one side; simplest and most cost-effective.

• Double-Sided: Conductive layers on both sides with plated through-holes.

• Multi-Layer: Three or more layers for complex designs.

• Rigid-Flex: Combines rigid and flexible sections, ideal for 3D configurations.

Applications

• Consumer Electronics: Smartphones (display connectors, foldable screens), wearables (smartwatches), and cameras.

• Automotive: Sensors, infotainment systems, and LED lighting.

• Medical: Endoscopes, hearing aids, and implantable devices.

• Aerospace: Satellite components and avionics for weight reduction.

• Industrial: Robotics and machinery requiring vibration resistance.

Advantages

• Space and Weight Efficiency: Up to 75% lighter than rigid PCBs, ideal for compact devices.

• Durability: Withstand millions of bending cycles (e.g., 1M+ cycles in wearables).

• Design Flexibility: 3D configurations and dynamic movement accommodation.

• Reliability: Reduced interconnects lower failure risks.

Challenges

• Cost: Higher material and manufacturing expenses compared to rigid PCBs.

• Assembly Complexity: Specialized handling required to avoid damage during soldering.

• Environmental Sensitivity: Susceptible to moisture, UV, and extreme temperatures without proper encapsulation.

Future Trends

• Advanced Materials: Thinner, higher-performance substrates and conductive inks.

• Stretchable Electronics: Integration with elastomers for wearable health monitors.

• Sustainability: Biodegradable substrates and lead-free manufacturing processes.

• Additive Manufacturing: 3D printing for rapid prototyping and embedded components.

Conclusion

FPCs are pivotal in advancing modern electronics, offering unparalleled adaptability and efficiency. While challenges like cost and assembly complexity persist, ongoing innovations in materials and manufacturing promise to expand their applications further. As industries demand lighter, more durable solutions, FPCs will remain at the forefront of electronic design, enabling breakthroughs in wearable tech, medical devices, and beyond.

This guide provides a thorough overview of FPCs, balancing technical depth with accessibility. By understanding their structure, applications, and evolving trends, engineers and designers can leverage FPCs to push the boundaries of innovation.
