Electrically Erasable Programmable Read-Only Memory (EEPROM) is a type of non-volatile memory used in a wide range of electronic devices. EEPROMs are essential for storing small amounts of data that need to be retained even when power is removed, such as configuration settings, calibration data, or user preferences. Choosing the right EEPROM IC for your project can be a daunting task, given the variety of options available. This guide will walk you through the key factors to consider when selecting an EEPROM IC, ensuring you make an informed decision.

1. Memory Size

The first and most obvious consideration is the amount of memory you need. EEPROMs come in a wide range of sizes, from a few bytes to several megabytes. The size you choose will depend on the amount of data you need to store.

• Small-Scale Applications: For simple applications like storing a few configuration settings, a small EEPROM (1Kbit to 16Kbit) may be sufficient.

• Medium-Scale Applications: For more complex applications, such as storing user data or logs, you might need an EEPROM in the range of 32Kbit to 512Kbit.

• Large-Scale Applications: For applications requiring substantial data storage, such as firmware updates or large datasets, consider EEPROMs with 1Mbit or more.

2. Interface Type

EEPROMs communicate with the host microcontroller or processor via different interface types. The choice of interface will depend on your system's architecture and the communication protocols it supports.

• I2C (Inter-Integrated Circuit): I2C is a popular two-wire interface that is easy to implement and widely supported. It is ideal for applications with limited pin counts and lower data transfer rates.

• SPI (Serial Peripheral Interface): SPI offers higher data transfer rates compared to I2C and is suitable for applications requiring faster communication. However, it requires more pins.

• Microwire: Microwire is a simpler, older interface that is less common today but may still be found in some legacy systems.

• Parallel Interface: Parallel EEPROMs offer the fastest data transfer rates but require more pins and are generally more expensive. They are typically used in high-speed applications.

3. Operating Voltage

EEPROMs operate at different voltage levels, and it's crucial to select one that matches your system's voltage requirements.

• Low Voltage (1.8V to 3.6V): Suitable for battery-powered devices or low-power applications.

• Standard Voltage (5V): Commonly used in older systems or applications where 5V logic is standard.

• Wide Voltage Range (1.8V to 5.5V): These EEPROMs are versatile and can operate across a wide range of voltages, making them suitable for a variety of applications.

4. Write Endurance

Write endurance refers to the number of write cycles an EEPROM can endure before it starts to degrade. This is a critical factor if your application involves frequent data updates.

• Low Endurance (10,000 to 100,000 cycles): Suitable for applications with infrequent data updates, such as configuration settings.

• High Endurance (1,000,000 cycles or more): Ideal for applications requiring frequent data writes, such as data logging or real-time data storage.

5. Data Retention

Data retention is the length of time an EEPROM can retain data without power. Most EEPROMs offer data retention periods of 10 years or more, but it's essential to verify this specification, especially for critical applications.

6. Package Type

EEPROMs come in various package types, and the choice depends on your PCB design and space constraints.

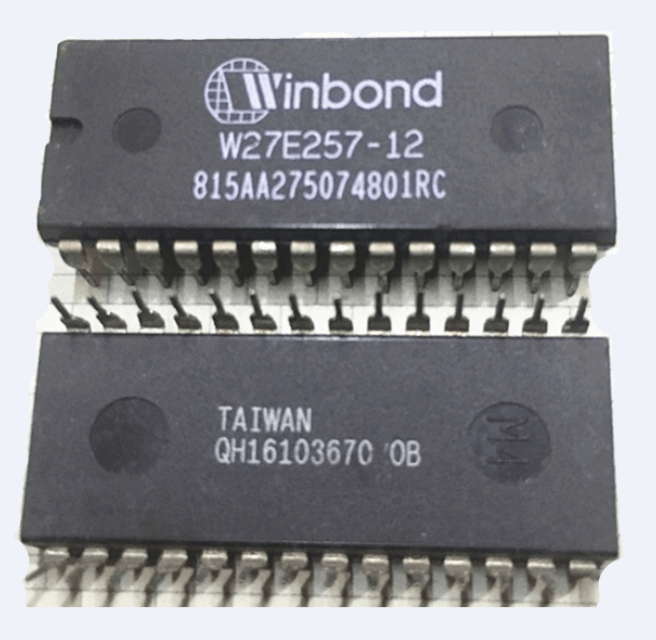

• DIP (Dual In-line Package): Suitable for through-hole mounting and prototyping.

• SOIC (Small Outline Integrated Circuit): A common surface-mount package for compact designs.

• TSSOP (Thin Shrink Small Outline Package): Offers a smaller footprint than SOIC, ideal for space-constrained applications.

• DFN (Dual Flat No-leads): Ultra-compact package for high-density designs.

7. Temperature Range

Consider the operating temperature range of the EEPROM, especially if your application will be exposed to extreme temperatures.

• Commercial Grade (0°C to 70°C): Suitable for most indoor applications.

• Industrial Grade (-40°C to 85°C): Ideal for outdoor or harsh environments.

• Automotive Grade (-40°C to 125°C): Designed for automotive applications where temperature extremes are common.

8. Additional Features

Some EEPROMs come with additional features that may be beneficial for your application:

• Write Protection: Hardware or software write protection to prevent accidental data corruption.

• Sequential Read: Allows for faster sequential data reads, useful for applications requiring rapid data access.

• Unique ID: Some EEPROMs come with a unique identifier, useful for security or identification purposes.

9. Cost and Availability

Finally, consider the cost and availability of the EEPROM. While it's tempting to go for the cheapest option, ensure that the chosen EEPROM meets all your technical requirements. Additionally, check the lead times and availability from suppliers to avoid delays in your project.

Conclusion

Choosing the right EEPROM IC involves careful consideration of various factors, including memory size, interface type, operating voltage, write endurance, data retention, package type, temperature range, and additional features. By thoroughly evaluating these aspects, you can select an EEPROM that not only meets your current needs but also provides flexibility for future requirements. Whether you're working on a small-scale project or a complex industrial application, the right EEPROM will ensure reliable and efficient data storage.

Remember, the key to making the best choice is understanding your application's specific needs and matching them with the right EEPROM specifications.
