Choosing the right logic IC (Integrated Circuit) for your project is crucial for ensuring optimal performance, cost-effectiveness, and reliability. Here’s a comprehensive guide to help you select the best logic IC for your needs:

1. Understand Your Requirements

Before selecting a logic IC, clearly define the requirements of your project:

• Functionality: What logic operation do you need (e.g., AND, OR, NOT, NAND, NOR, XOR, etc.)?

• Input/Output Requirements: How many inputs and outputs are needed?

• Speed: What is the required operating frequency or propagation delay?

• Power Consumption: Is your project power-sensitive (e.g., battery-powered devices)?

• Voltage Levels: What supply voltage does your system use (e.g., 3.3V, 5V)?

• Noise Immunity: Does your application require high noise immunity (e.g., industrial environments)?

2. Choose the Logic Family

Logic ICs are available in different families, each with its own characteristics. The most common logic families are:

• TTL (Transistor-Transistor Logic):

• Voltage: 5V

• Speed: Moderate

• Power Consumption: High

• Example: 74LS series (Low-power Schottky)

• Best for: General-purpose applications, legacy systems.

• CMOS (Complementary Metal-Oxide-Semiconductor):

• Voltage: 3V to 15V (commonly 3.3V or 5V)

• Speed: Moderate to high

• Power Consumption: Very low (ideal for battery-powered devices)

• Example: 74HC series (High-speed CMOS), 4000 series

• Best for: Low-power, high-noise immunity applications.

• ECL (Emitter-Coupled Logic):

• Voltage: Negative supply voltage

• Speed: Very high

• Power Consumption: High

• Best for: High-speed applications (e.g., telecommunications).

• LV (Low-Voltage Logic):

• Voltage: 1.2V to 3.3V

• Speed: High

• Power Consumption: Very low

• Example: 74LVC series

• Best for: Modern low-voltage systems.

3. Consider Speed and Propagation Delay

• Propagation Delay: The time it takes for a signal to travel from input to output. Choose a logic family with a propagation delay that meets your timing requirements.

• Operating Frequency: Ensure the IC can handle the clock speed or signal frequency of your system.

4. Power Consumption

• For battery-powered or portable devices, choose low-power logic families like CMOS or LV.

• For high-performance systems, power consumption may be less critical.

5. Voltage Compatibility

• Ensure the logic IC’s input/output voltage levels are compatible with the rest of your circuit.

• Use level shifters if interfacing between different voltage levels (e.g., 3.3V and 5V).

6. Package Type

Logic ICs come in various packages:

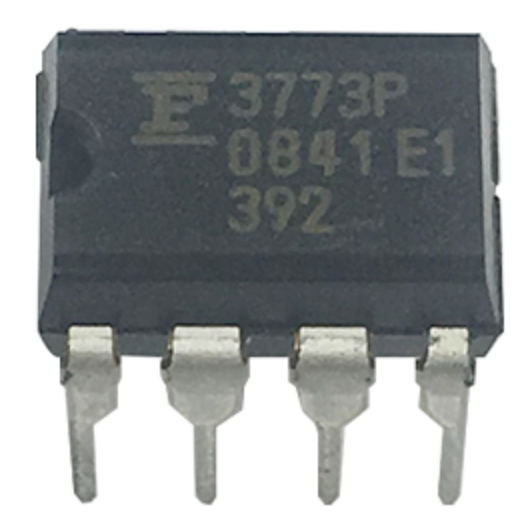

• Through-Hole: DIP (Dual In-line Package) for breadboarding or prototyping.

• Surface-Mount: SMD packages like SOIC, TSSOP, or QFN for compact designs.

• Choose a package that fits your PCB design and assembly process.

7. Noise Immunity

• For noisy environments (e.g., industrial or automotive), choose logic families with high noise immunity, such as CMOS.

• Use Schmitt trigger inputs for better noise rejection.

8. Temperature Range

• Commercial: 0°C to 70°C

• Industrial: -40°C to 85°C

• Military: -55°C to 125°C

• Select an IC with a temperature range suitable for your application.

9. Cost and Availability

• Compare prices from different manufacturers and distributors.

• Ensure the IC is readily available and not obsolete.

10. Additional Features

• Some logic ICs come with additional features like:

• Tri-state outputs (for bus sharing).

• Schmitt trigger inputs (for noise filtering).

• ESD protection (for robustness).

11. Simulation and Testing

• Use simulation tools (e.g., SPICE, LTspice) to test the logic IC in your circuit before prototyping.

• Verify the IC’s performance under real-world conditions.

12. Popular Logic IC Series

• 74xx Series: Widely used, includes TTL and CMOS variants.

• Example: 74LS00 (NAND gate), 74HC08 (AND gate).

• 4000 Series: CMOS logic, operates at higher voltages.

• Example: CD4011 (NAND gate).

• 74LVC Series: Low-voltage CMOS, ideal for modern designs.

13. Manufacturer Recommendations

• Refer to datasheets and application notes from reputable manufacturers like:

• Texas Instruments

• ON Semiconductor

• NXP Semiconductors

• STMicroelectronics

14. Future-Proofing

• Choose logic ICs that are widely used and not nearing obsolescence.

• Consider using programmable logic devices (e.g., CPLDs, FPGAs) for complex or evolving designs.

By carefully considering these factors, you can select the best logic IC for your project. Always refer to the datasheet for detailed specifications and application guidelines.
