Optocouplers, also known as opto-isolators, photocouplers, or optical isolators, are essential components in modern electronics. They provide electrical isolation between two circuits while allowing signal transmission through light. This isolation is crucial for protecting sensitive components, reducing noise, and ensuring safety in high-voltage applications. However, with a wide variety of optocoupler ICs available, choosing the right one can be challenging. This guide will walk you through everything you need to know to select the best optocoupler for your application.

What is an Optocoupler?

An optocoupler is a device that transfers electrical signals between two isolated circuits using light. It typically consists of:

1. Light Emitter: Usually an LED (Light Emitting Diode) that converts electrical signals into light.

2. Light Detector: A phototransistor, photodiode, or phototriac that detects the light and converts it back into an electrical signal.

3. Isolation Barrier: A transparent insulating material that separates the emitter and detector, providing electrical isolation.

The key advantage of optocouplers is their ability to prevent high voltages, noise, or ground loops from affecting sensitive circuits.

Key Parameters to Consider When Choosing an Optocoupler

To select the right optocoupler, you need to evaluate the following parameters:

1. Isolation Voltage

• This is the maximum voltage the optocoupler can withstand between its input and output terminals.

• Choose an optocoupler with an isolation voltage higher than the maximum voltage difference expected in your application.

• Common isolation voltages range from 1kV to 10kV.

2. Current Transfer Ratio (CTR)

• CTR is the ratio of the output current to the input current, expressed as a percentage.

• A higher CTR means better efficiency in signal transmission.

• Ensure the CTR is sufficient for your circuit's requirements, typically ranging from 20% to 600%.

3. Speed and Bandwidth

• Optocouplers have a limited response time, which affects their ability to transmit high-frequency signals.

• For digital signals, check the rise and fall times (tr and tf).

• For analog signals, consider the bandwidth.

• High-speed optocouplers are available for applications like data communication.

4. Input Characteristics

• Forward Voltage (Vf): The voltage required to turn on the LED.

• Forward Current (If): The current needed to operate the LED.

• Ensure your circuit can provide the required If and Vf.

5. Output Characteristics

• Output Type: Optocouplers can have phototransistor, photodiode, or phototriac outputs.

• Output Current (Ic): The maximum current the output can handle.

• Output Voltage (Vce): The voltage rating of the output transistor.

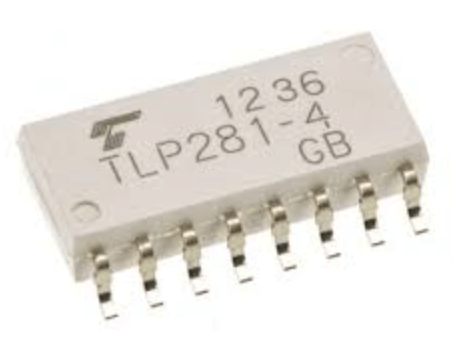

6. Package Type

• Optocouplers come in various packages, such as DIP (Dual In-line Package), SMD (Surface Mount Device), and SOP (Small Outline Package).

• Choose a package that fits your PCB design and space constraints.

7. Temperature Range

• Ensure the optocoupler can operate within the temperature range of your application.

• Industrial-grade optocouplers typically support -40°C to +85°C or higher.

8. Additional Features

• Some optocouplers include built-in features like Schmitt triggers, logic gates, or high-speed capabilities.

• These features can simplify circuit design and improve performance.

Types of Optocouplers

Optocouplers are categorized based on their output type and application:

1. Phototransistor Optocouplers

• Commonly used for general-purpose isolation and signal transmission.

• Moderate speed and CTR.

• Suitable for digital and low-frequency analog signals.

2. Photodiode Optocouplers

• Faster response times compared to phototransistors.

• Ideal for high-speed data communication and precision analog applications.

3. Phototriac Optocouplers

• Used for AC load control and switching applications.

• Can directly drive small AC loads.

4. Logic Output Optocouplers

• Include built-in logic gates for interfacing with digital circuits.

• Provide clean, noise-free signal transmission.

5. High-Speed Optocouplers

• Designed for high-frequency signal transmission.

• Used in data communication, networking, and industrial automation.

Applications of Optocouplers

Optocouplers are used in a wide range of applications, including:

1. Power Supply Isolation: Isolate control circuits from high-voltage power supplies.

2. Motor Control: Protect microcontrollers from high-voltage motor drivers.

3. Data Communication: Transmit signals between isolated networks.

4. Medical Equipment: Ensure patient safety by isolating sensitive circuits.

5. Industrial Automation: Protect control systems from high-voltage machinery.

How to Choose the Right Optocoupler

Follow these steps to select the best optocoupler for your application:

1. Define Your Requirements:

• Determine the isolation voltage, speed, CTR, and output type needed.

• Consider the operating environment (temperature, humidity, etc.).

2. Match Input and Output Characteristics:

• Ensure the optocoupler's input (LED) matches your driving circuit.

• Verify the output can handle the load in your circuit.

3. Check Speed and Bandwidth:

• For high-frequency signals, choose a high-speed optocoupler.

• For low-frequency signals, a standard optocoupler may suffice.

4. Evaluate Package and Size:

• Choose a package that fits your PCB layout and assembly process.

5. Consider Additional Features:

• Look for features like built-in logic gates or Schmitt triggers if needed.

6. Review Datasheets:

• Compare specifications from different manufacturers.

• Pay attention to reliability, longevity, and temperature performance.

7. Test and Validate:

• Prototype your circuit and test the optocoupler under real-world conditions.

Popular Optocoupler ICs

Here are some widely used optocoupler ICs:

1. PC817: A general-purpose phototransistor optocoupler with a CTR of 50-600%.

2. 6N137: A high-speed optocoupler with a logic gate output, ideal for data communication.

3. MOC3021: A phototriac optocoupler for AC load control.

4. TLP521: A versatile optocoupler with a wide range of CTR and isolation voltage options.

5. HCPL-4504: A high-speed optocoupler for industrial and automotive applications.

Conclusion

Choosing the right optocoupler IC requires careful consideration of your application's requirements, including isolation voltage, speed, CTR, and output type. By understanding the key parameters and evaluating the available options, you can select an optocoupler that ensures reliable performance, safety, and efficiency in your circuit design. Always refer to datasheets and test your design to validate the chosen optocoupler's suitability for your application.

With this guide, you’re now equipped to make an informed decision and choose the best optocoupler IC for your project. Happy designing!
