Zener diodes are essential components in electronic circuits for voltage regulation, surge protection, and signal clamping. Unlike standard diodes, Zener diodes operate in reverse bias under controlled breakdown conditions. This guide provides step-by-step methods to test and distinguish Zener diodes from other diodes, ensuring accurate identification and functionality verification.

1. Understanding Zener Diodes

Key Characteristics

• Reverse Breakdown Voltage (Vz): The voltage at which a Zener diode allows current to flow in reverse bias. This is its defining parameter (e.g., 3.3V, 5.1V, 12V).

• Power Rating (P): Maximum power the diode can dissipate (e.g., 500mW, 1W).

• Forward Bias Behavior: Similar to standard diodes (~0.6–0.7V forward voltage drop).

2. Tools Required

• Digital Multimeter (DMM) with diode test mode.

• Variable DC Power Supply (0–30V).

• Resistors (1kΩ, 100Ω) for current limiting.

• Breadboard and Jumper Wires.

• Component Tester or Curve Tracer (optional).

3. Testing Methods

Method 1: Using a Multimeter (Diode Test Mode)

Steps:

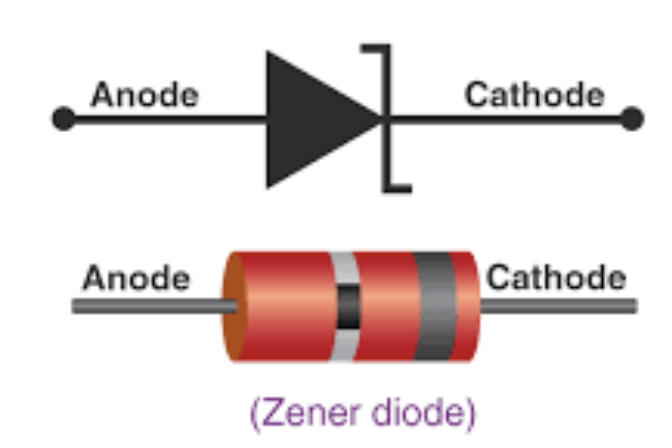

1. Identify Anode/Cathode:

• Forward Bias: Connect red probe to anode, black to cathode. Expect ~0.6–0.7V.

• Reverse Bias: Swap probes. A standard diode shows "OL," but a Zener may display a voltage if Vz < multimeter’s test voltage (~3V).

• The cathode is marked with a band or stripe. If unmarked, use the multimeter’s diode test:

2. Limitations:

• Multimeters often fail to activate Zener breakdown for higher Vz values. Use this method only for low-voltage Zeners (≤3V).

Method 2: Using a DC Power Supply

Circuit Setup:

• Connect the Zener diode in reverse bias (cathode to power supply’s positive terminal).

• Add a current-limiting resistor (e.g., 1kΩ) in series (Figure 1).

• Connect a voltmeter across the diode.

Procedure:

1. Gradually increase the power supply voltage while monitoring the voltmeter.

2. When the voltage stabilizes, this is the Zener voltage (Vz).

3. Confirm by comparing the reading to the diode’s datasheet value (±5% tolerance).

Example:
For a 5.1V Zener, the measured voltage should stabilize near 5.1V when the supply exceeds this value.

Method 3: Curve Tracer or Component Tester

• Advanced tools like curve tracers plot the diode’s IV characteristics, clearly showing the Zener breakdown voltage in reverse bias.

• Handheld component testers (e.g., TC1) automatically detect and display Vz.

4. Distinguishing Zener Diodes from Other Diodes

5. Safety Tips

• Current Limiting: Always use a resistor to avoid thermal runaway.

• Power Rating: Do not exceed P = Vz × I (e.g., a 1W Zener at 5.1V can handle ~200mA).

• Polarity: Double-check reverse bias connections to prevent damage.

6. Troubleshooting Common Issues

• No Stabilization:

• The diode may be defective or not a Zener.

• Ensure the power supply exceeds Vz.

• Overheating:

• Reduce current with a higher resistor value.

• Incorrect Vz Reading:

• Check for counterfeit or mismarked components.

7. Conclusion

Testing Zener diodes requires verifying their reverse breakdown voltage using a power supply or specialized tools. Distinguishing them from standard diodes hinges on their unique reverse-bias conduction at Vz. By following these methods, you can ensure proper functionality and integration into voltage regulation circuits. Always prioritize safety and cross-reference datasheets for accurate results.
