Linear voltage regulators like the LM317 and LM7805 are staples in electronics for converting higher input voltages to stable, lower output voltages. While both serve similar purposes, their design philosophies and use cases differ significantly. This article provides a detailed comparison to help you choose the right regulator for your project.

1. Overview of the Regulators

LM7805

• Type: Fixed 5V linear voltage regulator.

• Key Features:

• Output voltage: Fixed at 5V ±4% (typical).

• Maximum current: 1.5A (with heatsink).

• Dropout voltage: ~2V (input must be ≥7V for 5V output).

• Built-in protections: Overcurrent, thermal shutdown.

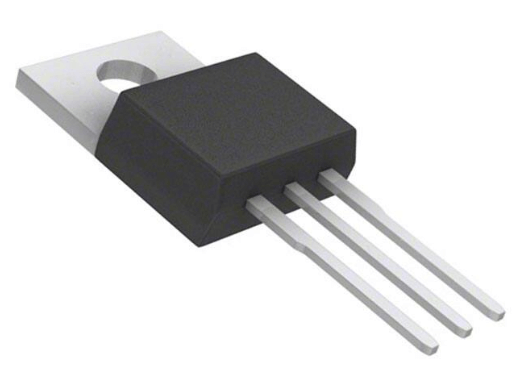

• Package: TO-220, TO-3, or surface-mount.

LM317

• Type: Adjustable linear voltage regulator.

• Key Features:

• Output voltage: Adjustable from 1.25V to 37V via external resistors.

• Maximum current: 1.5A (with heatsink).

• Dropout voltage: ~1.5–3V (depends on load).

• Built-in protections: Overcurrent, thermal shutdown.

• Package: TO-220, TO-3, or surface-mount.

2. Key Differences

A. Output Voltage Flexibility

• LM7805: Fixed 5V output. No external components needed beyond input/output capacitors.

• LM317: Adjustable output via a resistor network (e.g., R1 and R2). Requires more components but supports variable voltages.

B. Dropout Voltage

• LM7805: Requires ≥7V input for stable 5V output (2V dropout).

• LM317: Can operate with a lower input voltage (e.g., 6.5V input for 5V output due to ~1.5V dropout at 1A).

C. Efficiency and Heat Dissipation

Both are linear regulators, so efficiency is determined by:

$$\text{Efficiency}=\frac{V_{out}}{V_{in}}\times 100\mathrm{\%}$$

• LM7805: Efficiency drops significantly if $V_{in}$ is much higher than 5V (e.g., 45% efficiency at $V_{in}=12V$).

• LM317: Efficiency depends on the configured $V_{out}$. For example, setting $V_{out}=9V$ with $V_{in}=12V$ yields 75% efficiency.

Thermal Note: Both regulators dissipate power as heat:

$$P_{dissipated}=(V_{in}?V_{out})\times I_{load}$$

Adequate heatsinking is critical for high-current applications.

D. Circuit Complexity

• LM7805: Simpler to use—requires only input/output capacitors.

• LM317: Needs two resistors to set $V_{out}$, increasing component count.

E. Cost

• LM7805: Generally cheaper (~$0.20\text{–}$0.50 per unit) due to fixed-output simplicity.

• LM317: Slightly more expensive (~$0.30\text{–}$0.70) but offers versatility.

3. Performance Comparison

4. Pros and Cons

LM7805

• Pros:

• Simple, no external components beyond capacitors.

• Lower cost for fixed 5V applications.

• Robust and widely available.

• Cons:

• Inflexible output voltage.

• Higher dropout voltage limits low-input scenarios.

LM317

• Pros:

• Adjustable output for versatile use.

• Lower dropout voltage in some configurations.

• Can replace multiple fixed regulators.

• Cons:

• Requires external resistors.

• Slightly higher cost and board space.

5. Application Scenarios

When to Use LM7805:

• Projects requiring a stable 5V supply (e.g., Arduino, microcontrollers).

• Low-complexity designs where cost and simplicity are critical.

• Input voltage is consistently ≥7V.

When to Use LM317:

• Variable voltage needs (e.g., lab power supplies, LED drivers).

• Input voltage is close to the desired output (e.g., 6.5V input for 5V output).

• Prototyping or multi-voltage systems.

6. Conclusion

Neither the LM317 nor LM7805 is universally "better"—the choice depends on your requirements:

• Choose LM7805 for fixed 5V applications where simplicity and cost matter.

• Choose LM317 for adjustable voltage needs or tighter dropout constraints.
