EPROM (Erasable Programmable Read-Only Memory) integrated circuits (ICs) are a type of non-volatile memory used in electronic devices to store firmware or software that must be retained even when power is removed. EPROMs are widely used in applications where the stored data needs to be updated occasionally, but not frequently. This guide will provide a comprehensive overview of EPROM ICs, including their history, structure, working principles, applications, advantages, disadvantages, and future prospects.

History of EPROM ICs

The development of EPROM ICs can be traced back to the early 1970s. The first EPROM was invented by Dov Frohman at Intel in 1971. This invention was a significant milestone in the evolution of memory technology, as it allowed for the first time the ability to erase and reprogram a memory device. The Intel 1702, introduced in 1971, was the first commercially available EPROM.

Structure of EPROM ICs

EPROM ICs are composed of a grid of memory cells, each of which consists of a single transistor. The key components of an EPROM IC include:

1. Memory Array: The memory array is the core of the EPROM, consisting of a grid of memory cells. Each cell is made up of a floating-gate MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor).

2. Floating-Gate Transistor: The floating-gate transistor is the fundamental building block of an EPROM cell. It has a control gate and a floating gate, which is electrically isolated. The floating gate can trap electrons, which alters the threshold voltage of the transistor and determines whether the cell stores a "0" or a "1."

3. Address Decoder: The address decoder is responsible for selecting the appropriate memory cell based on the address provided by the external circuitry.

4. Output Buffer: The output buffer amplifies the signal read from the memory cells and sends it to the output pins.

5. Control Logic: The control logic manages the read, write, and erase operations of the EPROM.

Working Principle of EPROM ICs

Programming (Writing) Data

To program an EPROM, a high voltage (typically 12.5V to 21V) is applied to the control gate of the floating-gate transistor. This causes electrons to tunnel through the thin oxide layer and become trapped in the floating gate. The presence of these electrons increases the threshold voltage of the transistor, effectively storing a "0." If no electrons are trapped, the cell stores a "1."

Reading Data

When reading data from an EPROM, a lower voltage is applied to the control gate. If the floating gate contains trapped electrons (storing a "0"), the transistor will not conduct, and the output will be low. If the floating gate is empty (storing a "1"), the transistor will conduct, and the output will be high.

Erasing Data

EPROMs are erased by exposing the memory array to ultraviolet (UV) light. The UV light provides enough energy to the trapped electrons in the floating gate, allowing them to escape and return to the substrate. This process resets all the memory cells to their initial state (storing "1"). The EPROM must be removed from the circuit and placed under a UV eraser for a specified duration (typically 15-30 minutes) to complete the erasure.

Applications of EPROM ICs

EPROM ICs have been used in a wide range of applications, including:

1. Microcontroller Firmware: EPROMs are commonly used to store firmware in microcontrollers and other embedded systems. The firmware can be updated by reprogramming the EPROM.

2. BIOS Storage: In early personal computers, EPROMs were used to store the BIOS (Basic Input/Output System) firmware, which initializes the hardware during the boot process.

3. Industrial Control Systems: EPROMs are used in industrial control systems to store control programs and configuration data.

4. Automotive Electronics: EPROMs are used in automotive electronics for storing calibration data, firmware, and other critical information.

5. Consumer Electronics: EPROMs have been used in various consumer electronics, such as video game consoles, to store game code and other data.

Advantages of EPROM ICs

1. Non-Volatile Memory: EPROMs retain their data even when power is removed, making them ideal for storing firmware and other critical data.

2. Reprogrammability: Unlike PROMs (Programmable Read-Only Memory), EPROMs can be erased and reprogrammed multiple times, providing flexibility in development and testing.

3. Cost-Effective: EPROMs are relatively inexpensive compared to other types of non-volatile memory, such as EEPROM (Electrically Erasable Programmable Read-Only Memory) and Flash memory.

4. Reliability: EPROMs are known for their reliability and long-term data retention, making them suitable for applications where data integrity is critical.

Disadvantages of EPROM ICs

1. Limited Erase/Write Cycles: EPROMs have a limited number of erase/write cycles (typically around 1000 cycles), after which the memory cells may degrade.

2. UV Erasure Requirement: EPROMs require exposure to UV light for erasure, which is a time-consuming process and requires specialized equipment.

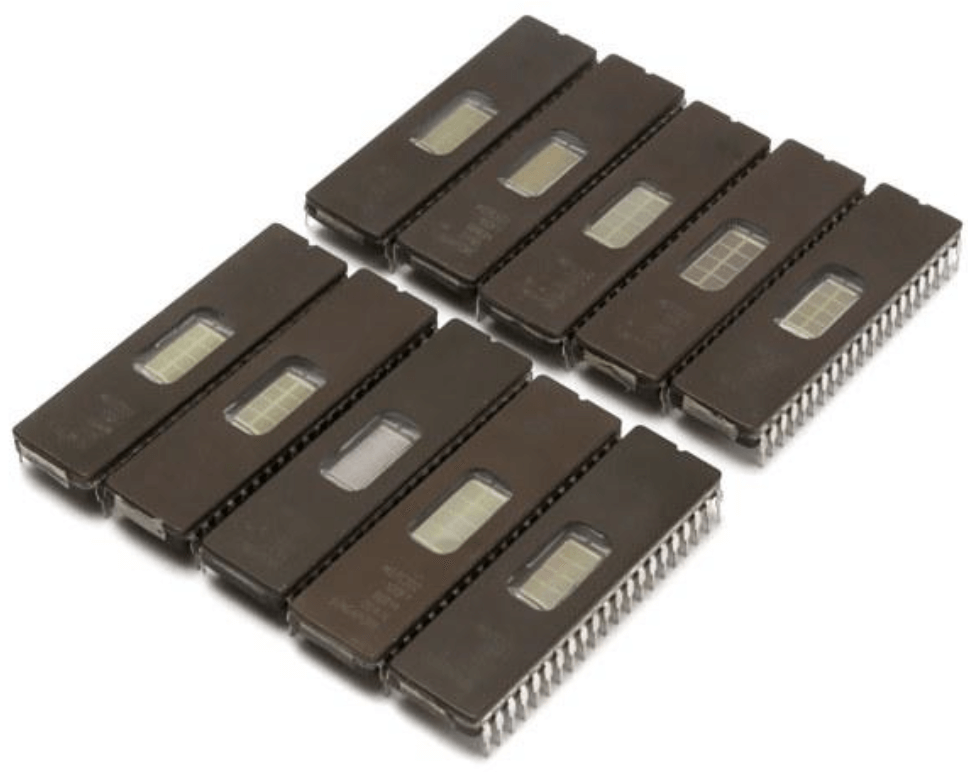

3. Package Design: EPROMs are typically housed in ceramic packages with a transparent quartz window to allow UV light to reach the memory array. This design makes them more expensive and less robust compared to other memory types.

4. Slower Write Speed: Writing data to an EPROM is slower compared to other memory types, such as EEPROM and Flash memory.

Comparison with Other Memory Types

1. EPROM vs. PROM: PROMs can only be programmed once and cannot be erased or reprogrammed. EPROMs, on the other hand, can be erased and reprogrammed multiple times.

2. EPROM vs. EEPROM: EEPROMs can be electrically erased and reprogrammed without the need for UV light, making them more convenient for frequent updates. However, EEPROMs are generally more expensive and have a lower density compared to EPROMs.

3. EPROM vs. Flash Memory: Flash memory is a type of EEPROM that allows for faster write speeds and higher densities. Flash memory can also be electrically erased and reprogrammed, making it more versatile than EPROMs. However, Flash memory is more expensive and has a limited number of write cycles.

Future of EPROM ICs

While EPROMs have been largely replaced by more advanced memory technologies such as EEPROM and Flash memory, they still find use in certain niche applications where cost, reliability, and non-volatility are critical. However, the demand for EPROMs has declined significantly, and many manufacturers have discontinued their production.

In the future, EPROMs are likely to be used primarily in legacy systems and specialized applications where their unique characteristics are still valued. As memory technology continues to evolve, newer types of non-volatile memory, such as MRAM (Magnetoresistive Random-Access Memory) and RRAM (Resistive Random-Access Memory), may eventually replace EPROMs entirely.

Conclusion

EPROM ICs have played a crucial role in the development of modern electronics, providing a reliable and cost-effective solution for non-volatile memory storage. While they have been largely superseded by more advanced memory technologies, EPROMs remain an important part of the history of semiconductor memory. Understanding the structure, working principles, and applications of EPROMs is essential for anyone involved in electronics design and development.

As technology continues to advance, the legacy of EPROMs will live on in the form of newer, more efficient memory technologies that build upon the principles first established by these pioneering devices.
