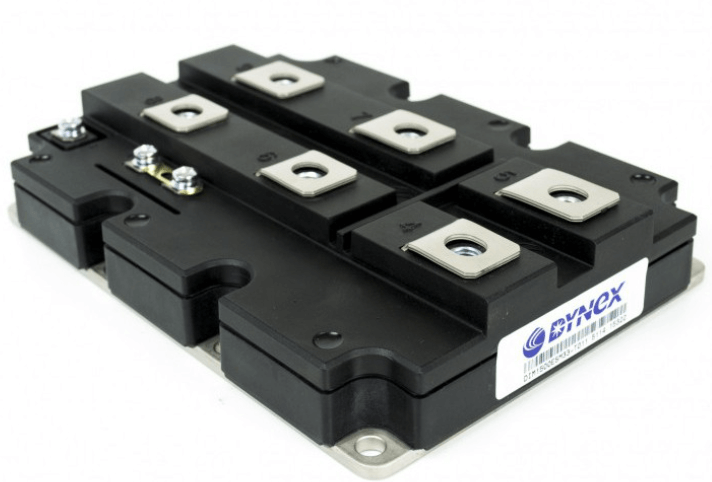

What Is an IGBT Module: The Ultimate Guide
The Insulated Gate Bipolar Transistor (IGBT) module is a cornerstone of modern power electronics, enabling efficient energy control in high-voltage and high-current applications. Combining the advantages of MOSFETs and bipolar junction transistors (BJTs), IGBT modules are pivotal in industries ranging from electric vehicles to renewable energy systems. This guide explores their structure, operation, applications, and future trends.
1. Structure of an IGBT Module
An IGBT module integrates multiple IGBT chips, diodes, and auxiliary components into a single package. Key structural elements include:
1.1 Semiconductor Layers
N+ Buffer Layer: Facilitates smooth transition of carriers.
N- Drift Region: Handles high voltage by blocking reverse current.
P+ Substrate: Forms the collector terminal.
MOSFET Gate Structure: Insulated gate (oxide layer) controls current flow.
1.2 Terminals
Gate (G): Controls switching via voltage input.
Collector (C): Connects to the load.
Emitter (E): Completes the circuit.
1.3 Packaging
Baseplate: Often copper or aluminum for heat dissipation.
Isolation Layer: Electrically isolates components.
Bond Wires: Connect semiconductor dies to terminals.
2. Working Principle
IGBTs operate in two modes:
2.1 Turn-On Process
A positive voltage applied to the gate creates an inversion layer, allowing electrons to flow from the emitter to the drift region.
Holes from the P+ substrate inject into the drift region, reducing resistance (conductivity modulation).
2.2 Turn-Off Process
Removing the gate voltage stops the inversion layer.
Residual carriers recombine, blocking current flow.
2.3 Switching Characteristics
Turn-On Time: ~100–500 ns.
Turn-Off Time: ~200–1000 ns.
Switching Losses: Dominant at high frequencies.
3. Advantages and Disadvantages
3.1 Advantages
High Efficiency: Low conduction losses (1.5–3 V drop).
Fast Switching: Suitable for kHz-range frequencies.
High Voltage Handling: Up to 6.5 kV.
3.2 Disadvantages
Switching Losses: Limits ultra-high-frequency use.
Cost: More expensive than MOSFETs for low-power applications.
4. Applications
IGBT modules are critical in:
Electric Vehicles (EVs): Inverters convert DC battery power to AC for motors (e.g., Tesla Model S).
Renewable Energy: Solar inverters (SMA, Sungrow) and wind turbine converters.
Industrial Drives: Variable-frequency drives (VFDs) for motors.
Consumer Electronics: Induction cooktops, UPS systems.
5. Types of IGBT Modules
Standard IGBTs: General-purpose (e.g., Infineon FF450R12KE4).
Fast-Switching IGBTs: Optimized for <20 kHz (e.g., Mitsubishi CM600DY-24A).
Trench Gate IGBTs: Lower losses (used in Fuji Electric modules).
Reverse Conducting (RC-IGBT): Integrated anti-parallel diode.
6. Design Considerations
6.1 Thermal Management
Heat Sinks: Aluminum or copper.
Thermal Interface Materials: Silicone pads or thermal grease.
Cooling Methods: Forced air, liquid cooling.
6.2 Electrical Isolation
Isolation voltage up to 4 kV (critical for safety).
6.3 Protection Circuits
Snubbers: Reduce voltage spikes.
Desaturation Detection: Prevents overcurrent damage.
7. Selecting an IGBT Module
Key parameters:
Voltage Rating: 600 V to 6.5 kV.
Current Rating: 10 A to 1,500 A.
Switching Frequency: 2 kHz to 50 kHz.
Thermal Resistance: Lower values improve heat dissipation.
8. Testing and Reliability
8.1 Standards
JEDEC JESD22: Environmental testing.
IEC 60747: Semiconductor qualifications.
8.2 Failure Modes
Bond Wire Lift-Off: Due to thermal cycling.
Solder Fatigue: Mitigated with lead-free solder.
8.3 Accelerated Testing
HALT (Highly Accelerated Life Testing): Identifies design weaknesses.
9. Future Trends
Wide-Bandgap (WBG) Semiconductors: SiC and GaN hybrids for higher efficiency.
Smart Modules: Integrated sensors for real-time diagnostics.
Sustainability: Recycling silicon and copper from decommissioned modules.
10. Conclusion
IGBT modules are indispensable in modern power systems, offering a balance of efficiency and robustness. As technology evolves, integration with WBG materials and smart features will expand their role in green energy and electric mobility.
