Everything You Need To Know About eMMC IC

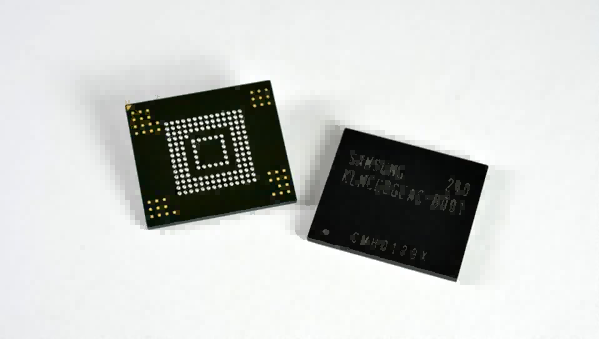

Image source Huawei Forum

 There is no doubt that technology is evolving at a very fast rate. This affects all aspects of the electronics manufacturing industry.

Engineers and manufacturers are working hard to come up with the best technological products that are solving modern problems.

 New gadgets are designed to be fast and more efficient when it comes to solving different types of problems.

Data is one of the core areas of modern technology. We are living in a data-driven era. A good number of solutions have been designed to facilitate efficient data storage and retrieval.

Embedded MultiMediaCard (eMMC) is one of these solutions. It has proven to be one of the best flash memory programmers in the market.

If you are involved in building products that entail system programming, it is important to have adequate information about eMMC.

As experienced experts in the field of electronics, we are here to give you the right information that you should know about eMMC.

You will learn what it is, how it works, and many other valuable information about the product.

In case you are planning to buy eMMC, you will have valuable information that will help you make the right selection for this product.

What is eMMC?

Embedded MultiMedia Card (eMMC) is a type of non-volatile memory solution that is specifically designed to be used in embedded systems.

A typical embedded system combines both hardware and software that are designed to execute specific functions in an application.

Most modern applications are embedded systems. This is because their functionality and performance are due to the combination of the hardware and software aspects of products.

Examples of embedded devices include smartphones, digital cameras, kitchen appliances, and entertainment devices, among many others.

All IoT devices also belong to the category of embedded systems.

eMMC comprises NAND flash memory and flash memory controller, which are integrated to form a single package.

 With such integration, it means that you will end up with a small and powerful device that is capable of delivering the best performance levels.

Keep in mind that such a combination gives manufacturers an easy time to develop smart solutions for modern technological needs.

The eMMC technology was developed in 2006 by the Multimedia Card Association in conjunction with  JEDEC.

 Originally, it was intended to be used on portable devices such as smartphones. In recent years, it has been used on networking devices, especially those that are covered in the IoT spectrum.

Some devices such as smartphones depend on the eMMC as their primary storage solution. This applies to very small sensors in the IoT. They also use this memory technology as their main data storage solution.

Since it was invented, eMMC has been undergoing gradual evolution.  The technology is more efficient and robust than it was some years back.

For example, modern eMMC chips are faster and have larger data storage capacities.

eMMC IC working principle

How does eMMC work?

The operation of eMMC is based on the principles of NAND flash memory. It uses memory cells to store data in binary forms.

The memory cells are arranged in series and end up forming a grid-like structure.

Each memory cell can store several bits of data.

The read, and write operations are managed by the memory controller which is embedded inside the eMMC chip.

 The NAND logic gates are used as inputs to the flash controller. They determine how data will be saved in the flash memory.

Operations of eMMC IC

Different operations define the working mechanism of eMMC.

· Controller operation: The working mechanism of eMMC IC entails data exchange between the chip and the host device. This is usually done by a controller. It facilitates a smooth exchange of data and instructions between the host device and the chip. Some of its main tasks include providing data exchange protocols, block management, and error correction. Controllers have algorithms that ensure data bits are evenly distributed on all the memory cells

· Data read operation:  The read operation is when the host device tries to break down and understand data that is stored in eMMC. It requests access to each piece of data that is stored in the memory cell. The controller will retrieve this data from the memory cells and send it to the host device for interpretation.

· Data write operation:  This is opposite to the read operation.  It entails the process of moving data from the host device to the eMMC chip for storage. Again, a controller is involved in the whole operation. It identifies the best destination on the memory cells where data from the host device will be stored.

· Error correction:  Error is a common issue that affects NAND flash memory, especially when they get old over long periods. Error correction is another function of the controller. It has special algorithms that detect errors in the data module and make necessary corrections.

Features of eMMC IC

Here are some of the key features of embedded multimedia card chips:

· Compact design and size: Most eMMC chips that are available in the electronics market are small and compact. This feature means that they can easily fit into small devices.

· Solid make and construction:  In addition to being small, these chips are strong and rigid. They are not easily damaged due to rough handling or harsh conditions.

· Large data storage capacity:  Despite having compact designs, eMMC chips can store data of up to 512 GB. This makes them ideal for a wide range of applications, including data-intensive applications

· Fast data operations: eMMC chips are designed for speed. They support fast read and write speeds. You can use them regardless of the data size that you would like to use because you will be sure of speed.

· Low power consumption: eMMC ICs are quite conservative when it comes to power consumption. All the essential operations on these chips tend to use minimal energy.

·  Highly scalable:  You can easily expand the storage capacity of devices that use eMMC. Simply get one that has a higher storage capacity.

Limitations of eMMC

  Speed is one of the limitations that are associated with eMMC chips. In comparison to alternatives, eMMC is quite slower. These chips may not be perfect for applications that rely on speed.

This is because the memory capacity of these modules is capped at 512GB.

Role of eMMC IC in system programming

 System programming is one of the most important life cycles of most electronic devices and applications.

Any electronic device can function in a particular way because of in-system programming.

 The process entails embedding software or firmware directly into a system.

eMMC IC  plays an important role in making it possible to perform in-system programming.

How does this happen?

First, eMMC has adequate memory capacity to store both small and heavy software. This allows manufacturers to store any volume of firmware in the chip before transferring it to the target devices. Additionally, the chips are designed to support different file formats.

Easy integration is another reason why eMMC chips are used for in-system programming. Most electronic devices are designed to support connections with eMMC ICs. Such connections include USB, JTAG, and SD slots. All these slots make it possible to create physical connections and integration with host devices.

Speed is another way in which eMMC   ICs support in-system programming. The fact that the chips have an 8-bit data bus means data transfer between the memory chips and the target device is faster and more efficient. High speeds ensure that you won't have to deal with frequent downtime.

We cannot ignore the impact of small and compact designs on in-system programming.  In addition to making it easy to create connections, the size makes it easy to handle the chips.

 The importance of eMMC chips in in-system programming illustrates why they are important in every aspect of electronic technology.

 These ICs enhance data handling capabilities, an important aspect of in-system programming.

 eMMC vs UFS: What is the difference?

 There is a popular notion that Universal Flash Storage (UFS) is a replacement for eMMC. How true is this statement and what is the difference between these two types of memory devices?

UFS was released by  JEDEC in 2011 and was intended to be a replacement for the JEDEC. Its design and make are optimized for performance and efficiency.

Manufacturers intended to produce a flash memory device that will deliver excellent performance without compromising on its power consumption.

Generally, UFS is better than eMMC in many different ways.

The main reason for the difference is it while eMMC  IC is half-duplex, UFS has a full-duplex interface. This configuration allows it to perform both read and write operations simultaneously.

Additionally, UFS  supports an array of other data operations such as throttling and bosting. It also has an enhanced communication interface with host devices.

Applications of eMMC IC

A perfect use case of eMMC is in portable electronics.

The memory solution is used on mobile devices such as smartphones, tablets, and even laptops.

 The small and lightweight nature of eMMC makes it possible for the manufacturers of these devices to embed eMMC in their products.

 The Internet of Things (IoT) is another industry that utilizes eMMC  ICs. These chips are embedded into sensors to support the operation of IoT devices.

Frequently asked questions about eMMC

 Here are some of the most common questions that people ask about eMMC.

Is eMMC better than SSD?

 There are several similarities between eMMC and solid-state drive (SSD).

One of the similarities is both rely on the NAND flash memory.

However, in terms of performance, SSDs are designed to deliver better performance than eMMC.  They support fast data access and retrieval.

Furthermore, SSDs have larger data storage capacities than eMMCs. They are ideal for the storage of bulk data.

Is eMMC IC storage good for mobile?

Since eMMC relies on the NAND flash memory technology, it is used on mobile devices.

However, compared to SSDs, it is quite slower in terms of read and write speeds.

The slow speeds of eMMC make it ideal for light applications such as browsing.

On the other hand, SSDs are ideal for applications that need high speeds.

 Can a laptop have both eMMC and SSD?

Laptops have both SSD and eMMC.  eMMC is soldered directly to the motherboard and it cannot be removed.

Of course, laptops also have SSDs. This means that both memory types can be used on the same laptop.

What is the maximum capacity of eMMC?

The memory capacity of eMMC ranges between 1GB to 512 GB.

This memory storage range is wide enough to support different applications, both industrial and consumer applications.

Beyond the size or capacity, eMMC ICs come in different grades.

It would help if you were keen on choosing an eMMC size and grade that is suitable for your application.

How long does eMMC storage last?

 The lifespan of eMMC IC is measured in terms of their read/write cycles.

Most eMMC chips are designed to have 3000 P/E cycles.

 In simple terms, it means that each flash memory cell in a chip can be written to, erased, and modified 3000 times before it starts failing.

However, the cycles will keep varying depending on many other factors. One of them is the quality of eMMC that you have.

 This explains why it is always advisable to use high-grade eMMC.

Additionally, how you use the chip will determine the lifecycle that it will have.

Can you increase eMMC storage?

 Once an eMMC IC has been embedded into an electronic device, it is impossible to alter its features.

You cannot increase the storage capacity of the chip.

 In case you would want to expand the storage capacity of the chip, you will have to replace the entire eMMC IC.

Alternatively, you can connect an external hard drive to the device, that is if you want to increase the memory capacity of the device.

Conclusion

I hope that from this guide, you have gained adequate knowledge of the eMMC.

You can confidently proceed to implement these data storage devices in your application areas.

In case you are planning to buy eMMC, you should prioritize choosing a reputable supplier or distributor.
