Include WithRG6 vs. RG59 Coaxial Cables: A Comprehensive Comparison
Coaxial cables are essential for transmitting audio, video, and data signals in applications ranging from home entertainment to security systems. Among the most common types are RG6 and RG59, which are often confused due to their similar appearances. This article explores their differences in design, performance, and ideal use cases.
1. Overview
RG6: Developed for modern high-frequency applications like satellite TV, broadband internet, and HDTV. Known for low signal loss and robust shielding.
RG59: An older design, traditionally used for analog video (e.g., CCTV) and short-distance applications. Less effective for high-bandwidth needs.
2. Physical Differences

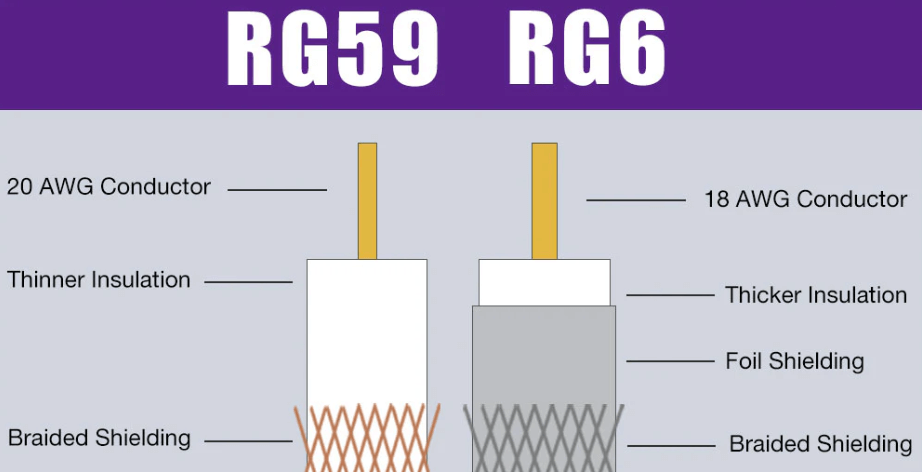

A. Construction
| Feature | RG6 | RG59 |
|---|---|---|
| Diameter | ~6.9 mm (thicker) | ~6.1 mm (thinner) |
| Center Conductor | 18 AWG copper-clad steel | 20–22 AWG copper-clad steel |
| Shielding | Quad shielding (2 foil + 2 braid) | Single foil + single braid |
| Flexibility | Less flexible due to thickness | More flexible, easier to install |
B. Impedance
Both cables are standardized at 75 ohms, making them suitable for video signals. Older RG59 variants (rare) may have 50 ohms, but modern versions align with RG6.
3. Electrical Characteristics
A. Attenuation (Signal Loss)
RG6: Lower attenuation due to a thicker center conductor and shielding. Ideal for runs over 50 feet.
RG59: Higher loss, especially above 50 MHz. Limited to shorter distances (<50 feet).
B. Frequency Range
RG6: Supports up to 3 GHz, suitable for HD/4K, satellite, and broadband.
RG59: Effective up to 1–2 GHz, struggling with modern high-frequency signals.
C. Shielding & Noise Resistance
RG6’s quad shielding minimizes electromagnetic interference (EMI), critical for dense urban areas. RG59’s single-layer shielding is prone to noise in high-interference environments.
4. Applications
RG6
Satellite TV: Handles high frequencies from satellite dishes.
Cable Internet/HDTV: Low loss ensures stable connections for modems and 4K TVs.
Long-Distance Runs: Performs reliably over 100+ feet.
RG59
Short-Run Analog Video: Legacy CCTV systems or connecting devices over short distances.
Retro Gaming/AV Equipment: Compatible with older analog devices (e.g., VCRs).
5. Cost and Installation
Cost: RG6 is ~20–30% more expensive due to enhanced materials. RG59 is budget-friendly for small projects.
Installation: RG59’s flexibility suits tight spaces, while RG6’s rigidity may require careful routing.
6. Comparison Table
| Feature | RG6 | RG59 |
|---|---|---|
| Best For | Long runs, HD/4K, satellite | Short analog runs, CCTV |
| Attenuation | Lower | Higher |
| Shielding | Quad-layer | Single-layer |
| Frequency | Up to 3 GHz | Up to 1–2 GHz |
| Cost | Higher | Lower |
7. When to Choose Which?
RG6: Opt for high-bandwidth needs, future-proofing, or environments with EMI.
RG59: Use for legacy systems, short analog connections, or cost-sensitive projects.
Conclusion
While RG59 remains viable for niche applications, RG6 is the superior choice for modern digital demands. Its lower attenuation, higher frequency support, and robust shielding make it ideal for today’s high-speed data and video transmission. Always consider cable length, signal type, and environmental factors when selecting between the two.
