Current-Sensing Solutions: An Overview

Current-sensing is a critical function in a wide range of electronic systems, from power management in consumer electronics to motor control in industrial applications. Accurate current measurement is essential for monitoring, control, and protection of circuits and devices. Current-sensing solutions encompass a variety of techniques and components designed to measure electrical current with precision, efficiency, and reliability. This article explores the fundamentals of current sensing, common methods, and the latest advancements in current-sensing technologies.

Why Current Sensing Matters

Current sensing is used to monitor the flow of electrical current in a circuit, providing valuable information for system performance and safety. Key applications include:

1. Power Management: In battery-operated devices, current sensing helps optimize power consumption and extend battery life.

2. Motor Control: Precise current measurement ensures efficient operation and protection of motors in industrial and automotive systems.

3. Overcurrent Protection: Detecting excessive current flow can prevent damage to components and circuits.

4. Energy Monitoring: In smart grids and renewable energy systems, current sensing is used to measure energy usage and generation.

Common Current-Sensing Methods

There are several methods for measuring current, each with its own advantages and limitations. The choice of method depends on factors such as accuracy, cost, and application requirements.

1. Shunt Resistor-Based Sensing

The most common and cost-effective method involves using a shunt resistor placed in series with the load. The voltage drop across the resistor (measured using Ohm's Law, V = I × R) is proportional to the current flowing through it. This method is simple and accurate but can introduce power losses due to the resistor's inherent resistance.

• Advantages: Low cost, high accuracy, and simplicity.

• Disadvantages: Power dissipation and heat generation in high-current applications.

2. Hall-Effect Sensors

Hall-effect sensors measure current by detecting the magnetic field generated around a current-carrying conductor. These sensors are non-intrusive, meaning they do not require direct electrical contact with the circuit.

• Advantages: Isolation from the circuit, suitable for high-current applications.

• Disadvantages: Higher cost and lower accuracy compared to shunt resistors.

3. Current Transformers (CTs)

Current transformers are used in AC systems to measure current by inductively coupling the primary current-carrying conductor to a secondary winding. The secondary current is proportional to the primary current and can be measured safely.

• Advantages: Electrical isolation and suitability for high-current AC applications.

• Disadvantages: Limited to AC measurements and bulky size.

4. Magnetoresistive Sensors

Magnetoresistive sensors detect changes in magnetic fields caused by current flow. They offer high sensitivity and are used in applications requiring precise current measurements.

• Advantages: High sensitivity and compact size.

• Disadvantages: Higher cost and susceptibility to external magnetic interference.

Advanced Current-Sensing Solutions

With the growing demand for higher efficiency and miniaturization, current-sensing technologies have evolved significantly. Some of the latest advancements include:

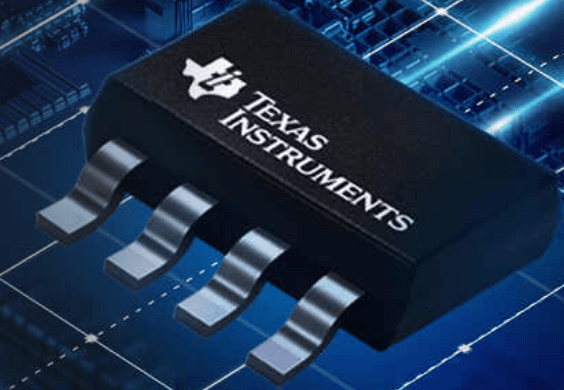

1. Integrated Current-Sensing ICs

Modern integrated circuits (ICs) combine shunt resistors, amplifiers, and analog-to-digital converters (ADCs) into a single package. These ICs provide high accuracy, low power consumption, and ease of integration into compact designs.

• Applications: Portable electronics, IoT devices, and automotive systems.

2. Zero-Drift Amplifiers

Zero-drift amplifiers minimize offset voltage and drift over time, ensuring accurate current measurements even in challenging environments.

• Applications: Precision instrumentation and industrial control systems.

3. Isolated Current Sensors

Isolated current sensors use techniques like capacitive or magnetic coupling to provide electrical isolation between the measured circuit and the sensing circuitry. This is critical for safety in high-voltage applications.

• Applications: Renewable energy systems, electric vehicles, and industrial automation.

4. Wireless Current Sensing

Emerging wireless current-sensing solutions enable remote monitoring of current without physical connections. These systems use wireless communication protocols like Bluetooth or Zigbee to transmit data.

• Applications: Smart grids, remote equipment monitoring, and IoT.

Choosing the Right Current-Sensing Solution

Selecting the appropriate current-sensing method depends on several factors:

• Accuracy Requirements: High-precision applications may require shunt resistors or integrated ICs.

• Current Range: Hall-effect sensors and current transformers are better suited for high-current applications.

• Isolation Needs: Isolated sensors are essential for high-voltage or safety-critical systems.

• Cost and Size Constraints: Shunt resistors and integrated ICs are ideal for cost-sensitive and space-constrained designs.

Conclusion

Current-sensing solutions play a vital role in modern electronics, enabling efficient power management, system control, and protection. From traditional shunt resistors to advanced integrated ICs and wireless sensors, the technology continues to evolve to meet the demands of increasingly complex and compact systems. By understanding the strengths and limitations of each method, engineers can select the best current-sensing solution for their specific application, ensuring optimal performance and reliability.
