The LM741 operational amplifier (op-amp) is one of the most iconic and enduring components in analog electronics. Introduced over five decades ago, it has become a staple in educational settings and practical circuits due to its reliability, simplicity, and affordability. This article delves into the history, design, applications, and legacy of the LM741, providing a detailed understanding of its role in electronic engineering.

Historical Background

The LM741 traces its origins to the μA741, developed by Fairchild Semiconductor in 1968. Designed by Dave Fullagar, the μA741 was the first op-amp to integrate frequency compensation internally, eliminating the need for external components. National Semiconductor later produced the LM741, a compatible version that became widely adopted. Its design set the standard for subsequent op-amps, cementing its place in electronics history.

Pin Configuration and Package

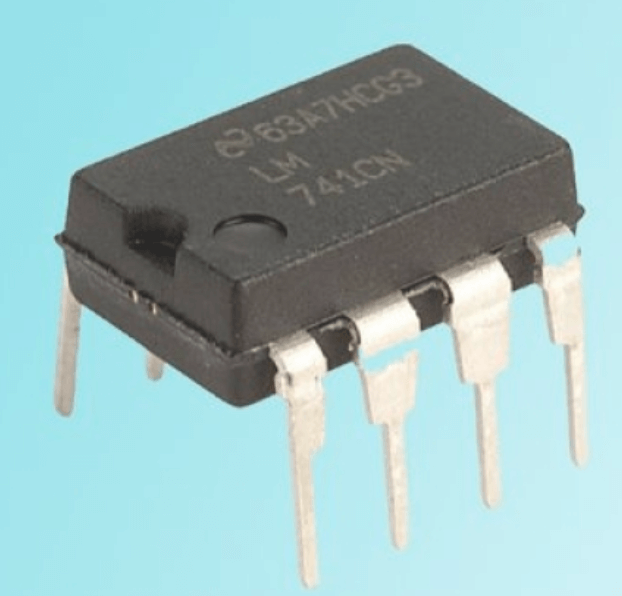

The LM741 is typically available in an 8-pin Dual In-line Package (DIP) or surface-mount forms. The pinout is as follows:

1. Offset Null: Adjusts input offset voltage (often unused).

2. Inverting Input (-): Receives the inverted input signal.

3. Non-Inverting Input (+): Receives the non-inverted input signal.

4. V-: Negative power supply (typically -15V).

5. Offset Null: Works with pin 1 for offset adjustment.

6. Output: Delivers the amplified signal.

7. V+: Positive power supply (typically +15V).

8. NC: No connection (reserved for future use).

Technical Specifications

• Supply Voltage: ±18V (maximum), commonly operated at ±15V.

• Input Offset Voltage: 1-5 mV (may require nulling in precision applications).

• Input Impedance: ~2 MΩ.

• Output Impedance: ~75 Ω.

• Open-Loop Gain: ~200,000 V/V.

• Gain Bandwidth Product (GBP): 1 MHz.

• Slew Rate: 0.5 V/μs.

• Quiescent Current: ~1.7 mA.

• Output Swing: Typically ±13V with ±15V supplies.

Key Features

• Internal Frequency Compensation: Eliminates need for external components.

• Short-Circuit Protection: Enhances durability.

• Wide Supply Range: Compatible with single or dual supplies.

• Low Cost and Availability: Accessible for hobbyists and professionals.

Applications and Circuit Examples

The LM741's versatility allows its use in numerous configurations:

1. Inverting Amplifier

• Gain: $A_v=?\frac{R_2}{R_1}$

• Input signal applied to pin 2, feedback via R2.

2. Non-Inverting Amplifier

• Gain: $A_v=1+\frac{R_2}{R_1}$

• Signal input at pin 3, output in phase.

3. Voltage Follower

• Unity gain buffer for impedance matching.

4. Comparator

• Open-loop configuration detects voltage differences, though slower than dedicated comparators.

5. Integrator and Differentiator

• Integrator: Capacitor in feedback (output integrates input).

• Differentiator: Capacitor at input (output proportional to input rate).

6. Active Filters and Oscillators

• Used in Sallen-Key filters and Wien bridge oscillators for signal conditioning.

Advantages and Disadvantages

Advantages

• Simplicity and ease of use.

• Robust short-circuit protection.

• Cost-effective for basic circuits.

Disadvantages

• Limited bandwidth (1 MHz GBP) and slew rate (0.5 V/μs).

• Higher input offset voltage compared to precision op-amps.

• Unsuitable for high-frequency or high-precision applications.

Modern Alternatives

While the LM741 remains popular, modern op-amps offer enhanced performance:

• TL081: JFET input for higher input impedance.

• OP07: Ultra-low offset voltage for precision.

• LM358: Dual op-amp with rail-to-rail output.

Safety and Design Considerations

• Decoupling Capacitors: Use 0.1 μF capacitors near power pins to prevent oscillations.

• Input Voltage Limits: Keep within supply rails to avoid phase reversal.

• Thermal Management: Ensure adequate heat dissipation in high-current setups.

Conclusion

The LM741 op-amp is a testament to enduring engineering design. While newer op-amps surpass it in speed, precision, and efficiency, the LM741's simplicity and reliability keep it relevant in education and basic analog circuits. Its legacy as a foundational component in electronics education and prototyping remains unchallenged, underscoring its iconic status in the field.
