| Datasheet |  PN-1322 datasheet |
|---|

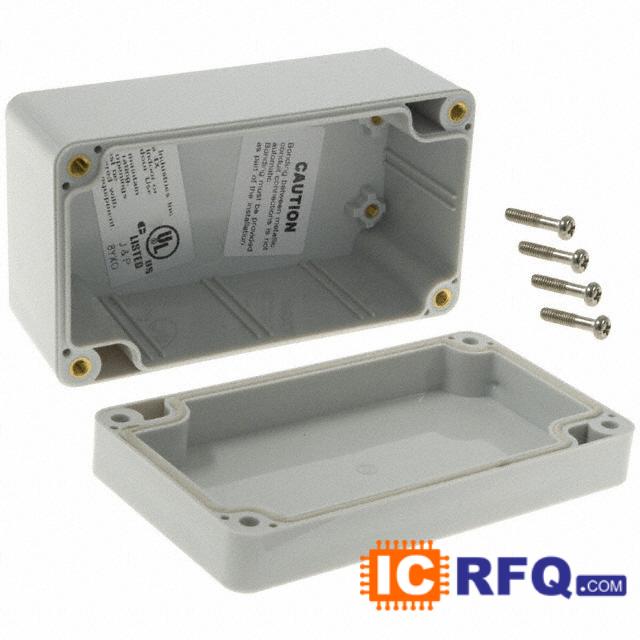

| Product Photos | PN-1322 |
|---|
| Product Training Modules | Avoiding the Top 5 Pitfalls of NEMA EnclosuresModified Enclosures |
|---|
| Video File | PN-PNR Series Plastic NEMA EnclosuresBud's Custom CapabilitiesCustom BUD Box Enclosures – Another Geek Moment |
|---|
| Catalog Drawings | PN-13 Series |
|---|
| Featured Product | Customize Your EnclosureNEMA 4X Enclosures |
|---|
| 2D Drawing | PN-132(1,2)(-C),(-DG).dxf |
|---|
| Standard Package | 1 |
|---|
| Category | Boxes, Enclosures, Racks |
|---|
| Family | Boxes |
|---|
| Series | PN |
|---|
| Container Type | Box |
|---|
| Size / Dimension | 4.528" L x 2.559" W (115.01mm x 65.00mm) |
|---|
| Height | 2.165" (55.00mm) |
|---|
| Area (L x W) | 11.6" (75cm) |
|---|
| Design | Cover Included |
|---|
| Material | Plastic, Polycarbonate |
|---|
| Color | Gray |
|---|
| Thickness | 0.100" (2.54mm) |
|---|
| Features | Card Guides, PCB Supports |
|---|
| Ratings | IP65, IP66, NEMA 1,2,4,4X,12,13, UL-508 |
|---|
| Material Flammability Rating | UL94 HB |
|---|
| Shipping Info | Shipped from Digi-Key |
|---|
| Weight | 0.313 lb (141.97g) |
|---|
| Online Catalog | PN Series |
|---|
| Associated Product | 377-1630-ND - CABLE GLAND NEMA 4X PG-7 BLACK 377-1631-ND - CABLE GLAND NEMA 4X PG-9 BLACK 377-1923-ND - CABLE GLAND NEMA 4X PG-11 BLACK 377-1924-ND - CABLE GLAND NEMA 4X PG-13.5 BLK 377-1974-ND - CABLE GLAND NEMA 4X PG-21 BLACK 377-1629-ND - BRACKET EXTERNAL MOUNT LIGHT GRY 377-1628-ND - BRACKET EXTERNAL MOUNT DARK GRY NG-9515-ND - CABLE GLAND NEMA 4X PG-16 BLACK NG-9517-ND - CABLE GLAND NEMA 4X PG-29 BLACK PNX-91421-ND - PANEL ALUM 4.06X2.09X0.06" |
|---|
| Alternate Color | 377-1117-ND - BOX PLSTC GRAY/CLR 4.53"LX2.56"W |
|---|
| Other Names | 377-1116 PN 1322 PN1322 |
|---|
