Technical Specifications of A9BAA-0603E
| Datasheet |  A9BAA-0603E datasheet |
|---|

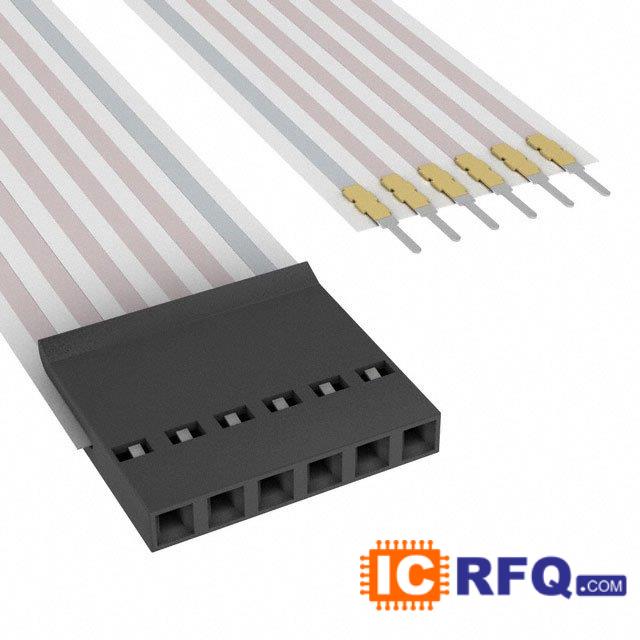

| Product Photos | A9BAx-060xx |
|---|
| Catalog Drawings | A9BAA Assembly Pin Out |
|---|
| Standard Package | 1 |
|---|
| Category | Cable Assemblies |
|---|
| Family | Flat Flex Cables (FFC, FPC) |
|---|
| Series | - |
|---|
| Contact Termination | Receptacle to Solder Tab |
|---|
| Length | 3.0" (76.2mm) |
|---|
| Number of Positions | 6 |
|---|
| Pitch | 0.050" (1.27mm) |
|---|
| Online Catalog | Flex Cable |
|---|
| Assembly Component | (6) A101782CT-ND - CONN RECEPT .050 CRIMP LONG GOLD (6) 487923-4-ND - CONN SOLDER TAB .050 LONG TIN (1) 487544-3-ND - CONN FFC RCPT HSG 6POS 1.27MM (1) AE06-500-ND - CABLE FLAT FLEX 6COND 0.050" |
|---|
| Alternate Length | A9BAA-0602E-ND - FLEX CABLE - AFJ06A/AE06/AFH06T A9BAA-0604E-ND - FLEX CABLE - AFJ06A/AE06/AFH06T A9BAA-0605E-ND - FLEX CABLE - AFJ06A/AE06/AFH06T A9BAA-0606E-ND - FLEX CABLE - AFJ06A/AE06/AFH06T A9BAA-0608E-ND - FLEX CABLE - AFJ06A/AE06/AFH06T |
|---|
We can supply TE Connectivity AMP Connectors part# A9BAA-0603E. Use the request quote form to request A9BAA-0603E pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number A9BAA-0603E. The price and lead time for A9BAA-0603E depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# A9BAA-0603E. We look forward to doing business with you.
