Technical Specifications of A9BAG-1805F
| Datasheet |  A9BAG-1805F datasheet |
|---|

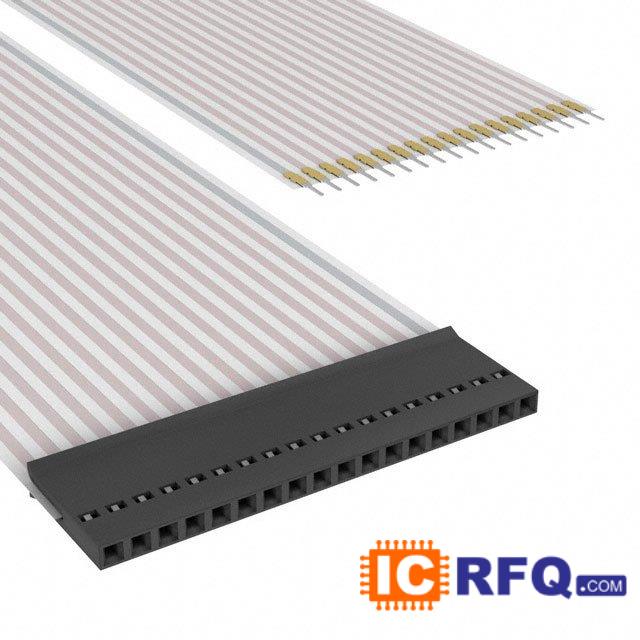

| Product Photos | A9BAx-180xx |
|---|
| Catalog Drawings | A9BAG Assembly Pin Out |
|---|
| Standard Package | 1 |
|---|
| Category | Cable Assemblies |
|---|
| Family | Flat Flex Cables (FFC, FPC) |
|---|
| Series | - |
|---|
| Contact Termination | Receptacle to Solder Tab |
|---|
| Length | 5.0" (127.0mm) |
|---|
| Number of Positions | 18 |
|---|
| Pitch | 0.100" (2.54mm) |
|---|
| Online Catalog | Flex Cable |
|---|
| Assembly Component | (18) 1-88997-2-ND - CONN CONTACT SLDR TAB FLAT FLEX (18) 2-487406-2-ND - CONN SOCKET FLEXFLAT .100 15GOLD (1) AF18-500-ND - CABLE FLAT FLEX 18COND 0.100" (1) 1-487378-7-ND - CONN FFC RCPT HSG 18POS 2.54MM |
|---|
| Alternate Length | A9BAG-1802F-ND - FLEX CABLE - AFF18G/AF18/AFE18T A9BAG-1803F-ND - FLEX CABLE - AFF18G/AF18/AFE18T A9BAG-1804F-ND - FLEX CABLE - AFF18G/AF18/AFE18T A9BAG-1806F-ND - FLEX CABLE - AFF18G/AF18/AFE18T A9BAG-1808F-ND - FLEX CABLE - AFF18G/AF18/AFE18T |
|---|
We can supply TE Connectivity AMP Connectors part# A9BAG-1805F. Use the request quote form to request A9BAG-1805F pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number A9BAG-1805F. The price and lead time for A9BAG-1805F depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# A9BAG-1805F. We look forward to doing business with you.
