Technical Specifications of TH3D156K025A0700
| Datasheet |  TH3D156K025A0700 datasheet |
|---|

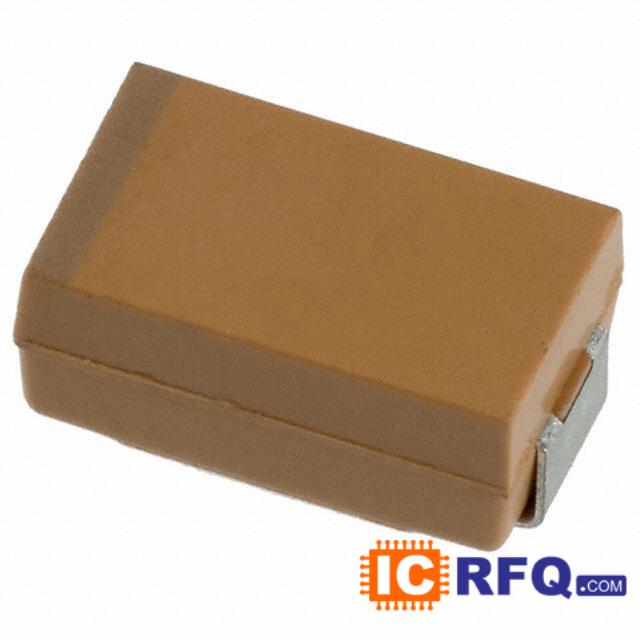

| Product Photos | TH3 Series D |
|---|
| Product Training Modules | Conformal Coated Tantalum CapacitorsMolded Tantalum Surface Mount CapacitorsHigh Temp Tantalum Capacitors for the Down-hole Drilling Market |
|---|
| Featured Product | TH3 Molded Solid Tantalum Surface Mount Chip Capacitors |
|---|
| PCN Design/Specification | Automotive Products Halogen Free Id 23/Dec/2014 |
|---|
| Standard Package | 500 |
|---|
| Category | Capacitors |
|---|
| Family | Tantalum Capacitors |
|---|
| Series | TANTAMOUNT? TH3 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Capacitance | 15μF |
|---|
| Tolerance | ±10% |
|---|
| Voltage - Rated | 25V |
|---|
| ESR (Equivalent Series Resistance) | 700 mOhm |
|---|
| Type | Molded |
|---|
| Operating Temperature | -55°C ~ 150°C |
|---|
| Mounting Type | Surface Mount |
|---|
| Package / Case | 2917 (7343 Metric) |
|---|
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
|---|
| Height - Seated (Max) | 0.122" (3.10mm) |
|---|
| Lead Spacing | - |
|---|
| Manufacturer Size Code | D |
|---|
| Features | General Purpose |
|---|
| Lifetime @ Temp. | - |
|---|
We can supply Vishay Sprague part# TH3D156K025A0700. Use the request quote form to request TH3D156K025A0700 pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TH3D156K025A0700. The price and lead time for TH3D156K025A0700 depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# TH3D156K025A0700. We look forward to doing business with you.
