Technical Specifications of BK/S505-4-R
| Datasheet |  BK/S505-4-R datasheet |
|---|

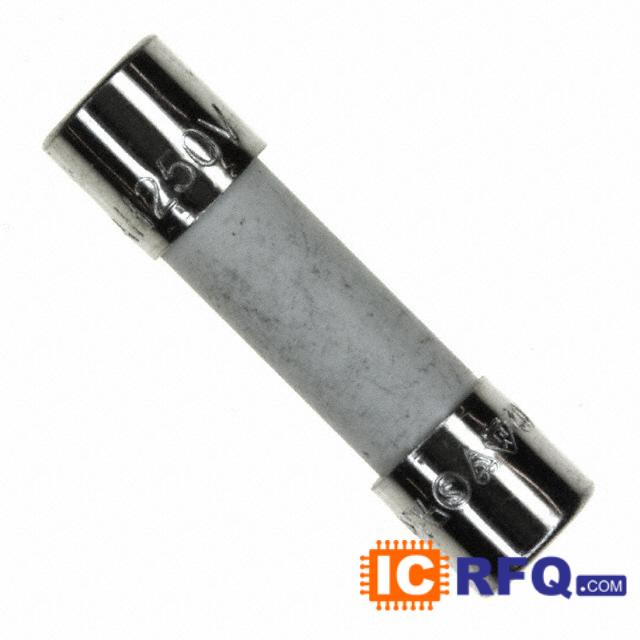

| Product Photos | S505 cylindrical |
|---|
| Product Training Modules | Selecting Fuses - Simple Procedures for Proper Overcurrent Protection of DC-DC Converters |
|---|
| Catalog Drawings | S500 Series |
|---|
| PCN Design/Specification | S505 Series Select Ratings 5/Feb/2009 |
|---|
| Standard Package | 100 |
|---|
| Category | Circuit Protection |
|---|
| Family | Fuses |
|---|
| Series | S505 |
|---|
| Packaging | Bulk |
|---|
| Fuse Type | Cartridge, Ceramic |
|---|
| Current Rating | 4A |
|---|
| Voltage Rating - AC | 250V |
|---|
| Voltage Rating - DC | - |
|---|
| Response Time | Slow |
|---|
| Package / Case | 5mm x 20mm |
|---|
| Mounting Type | Holder |
|---|
| Breaking Capacity @ Rated Voltage | 1.5kA |
|---|
| Melting I2t | 38.45 |
|---|
| Approvals | BSI, CCC/CQC, CSA, cULus, IMQ, KC, PSE/JET, SEMKO, VDE |
|---|
| Operating Temperature | - |
|---|
| Color | - |
|---|
| Size / Dimension | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) |
|---|
| DC Cold Resistance | 0.0185 Ohm |
|---|
| Online Catalog | S505 Series |
|---|
| Associated Product | 283-2713-ND - FUSE HLDR CART 250V 16A PNL MNT 283-2925-ND - FUSE HOLDER CART 250V 6.3A PCB 283-2926-ND - FUSE HOLDER CART 250V 6.3A PCB 283-2603-ND - FUSE CLIP CARTRIDGE 500V 15A PCB 283-2828-ND - FUSE CLIP CARTRIDGE PCB 283-2865-ND - FUSE CLIP CARTRIDGE PCB 283-2923-ND - FUSE BLOCK CART 250V 6.3A PCB 283-2712-ND - FUSE HLDR CART 250V 16A PNL MNT 283-2856-ND - FUSE HLDR CART 250V 16A PNL MNT 283-2710-ND - FUSE HLDR CARTRIDGE 250V 16A PCB 283-2921-ND - FUSE HLDR CART 250V 16A PNL MNT 283-2827-ND - FUSE CLIP CARTRIDGE PCB 283-2866-ND - FUSE CLIP CARTRIDGE 7A PCB 283-2854-ND - FUSE HLDR CART 250V 16A PNL MNT 283-2832-ND - FUSE CLIP CARTRIDGE 7A PCB 283-2924-ND - FUSE CLIP CART 250V 6.3A PCB |
|---|
| Other Names | 283-2932 BK-S505-4-R BK/S505-4-R-ND BK/S5054R |
|---|
We can supply Eaton part# BK/S505-4-R. Use the request quote form to request BK/S505-4-R pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BK/S505-4-R. The price and lead time for BK/S505-4-R depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# BK/S505-4-R. We look forward to doing business with you.
