Technical Specifications of 1N6276AG
| Datasheet |  1N6276AG datasheet |
|---|

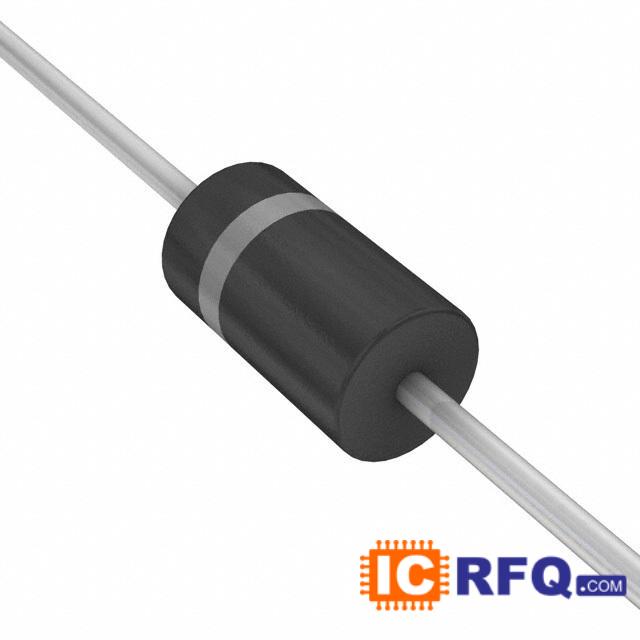

| Product Photos | DO-201AD |
|---|
| Catalog Drawings | Mosorb™ Axial Side |
|---|
| PCN Design/Specification | Datasheet Update 14/Aug/2008 |
|---|
| Standard Package | 500 |
|---|
| Category | Circuit Protection |
|---|
| Family | TVS - Diodes |
|---|
| Series | Mosorb? |
|---|
| Packaging | Bulk |
|---|
| Type | Zener |
|---|
| Unidirectional Channels | 1 |
|---|
| Bidirectional Channels | - |
|---|
| Voltage - Reverse Standoff (Typ) | 13.6V |
|---|
| Voltage - Breakdown (Min) | 15.2V |
|---|
| Voltage - Clamping (Max) @ Ipp | 22.5V |
|---|
| Current - Peak Pulse (10/1000μs) | - |
|---|
| Power - Peak Pulse | 1500W (1.5kW) |
|---|
| Power Line Protection | No |
|---|
| Applications | General Purpose |
|---|
| Capacitance @ Frequency | - |
|---|
| Operating Temperature | -65°C ~ 175°C (TJ) |
|---|
| Mounting Type | Through Hole |
|---|
| Package / Case | DO-201AD, Axial |
|---|
| Supplier Device Package | Axial |
|---|
| Online Catalog | Mosorb? Series |
|---|
| Other Names | 1N6276AGOS |
|---|
We can supply ON Semiconductor part# 1N6276AG. Use the request quote form to request 1N6276AG pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 1N6276AG. The price and lead time for 1N6276AG depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# 1N6276AG. We look forward to doing business with you.
