GCB105DYRN-S1355

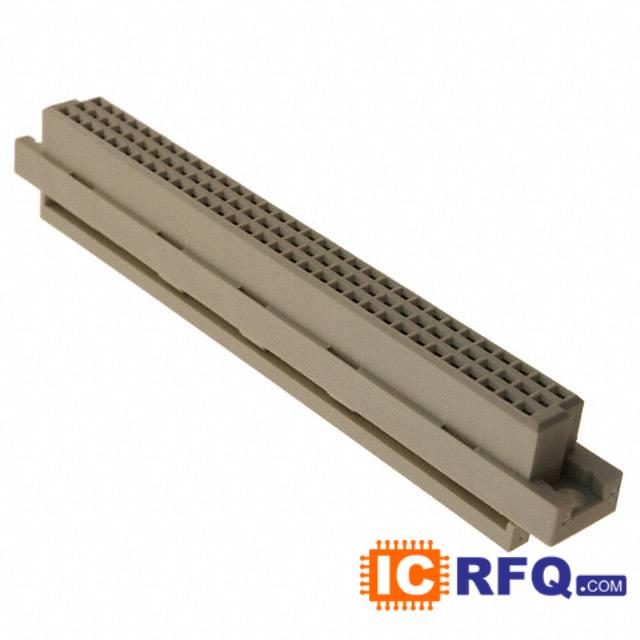

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | GCB105DYRN-S1355 |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN CARD EXTEND .050" 105POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| GCB105DYRN-S1355 Price |  |
Technical Specifications of GCB105DYRN-S1355
| Standard Package | 1 |
|---|---|
| Category | Connectors, Interconnects |
| Family | Card Edge Connectors - Edgeboard Connectors |
| Series | - |
| Packaging | Tube |
| Card Type | Non Specified - Dual Edge |
| Gender | Female |
| Number of Positions/Bay/Row | 105 |
| Number of Positions | 210 |
| Card Thickness | 0.062" (1.57mm) |
| Number of Rows | 2 |
| Pitch | 0.050" (1.27mm) |
| Features | Card Extender |
| Mounting Type | Board Edge, Straddle Mount |
| Termination | Solder |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Contact Finish Thickness | 30μin (0.76μm) |
| Contact Type | Cantilever |
| Color | Black |
| Flange Feature | - |
| Operating Temperature | -65°C ~ 125°C |
| Material - Insulation | Polyamide (PA9T), Nylon 9T |
| Read Out | Dual |
