EBC50DRTS-S13

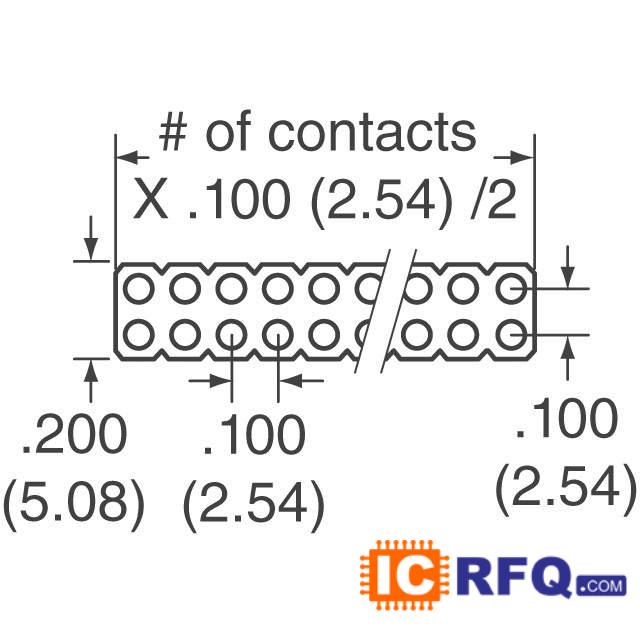

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | EBC50DRTS-S13 |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN EDGECARD 100POS .100 EXTEND |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| EBC50DRTS-S13 Price |  |
Technical Specifications of EBC50DRTS-S13
| Datasheet |  EBC50DRTS-S13 datasheet |
|---|---|
| Standard Package | 10 |
| Category | Connectors, Interconnects |
| Family | Card Edge Connectors - Edgeboard Connectors |
| Series | - |
| Packaging | Tube |
| Card Type | Non Specified - Dual Edge |
| Gender | Female |
| Number of Positions/Bay/Row | 50 |
| Number of Positions | 100 |
| Card Thickness | 0.062" (1.57mm) |
| Number of Rows | 2 |
| Pitch | 0.100" (2.54mm) |
| Features | Card Extender |
| Mounting Type | Board Edge, Straddle Mount |
| Termination | Solder |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Contact Finish Thickness | 10μin (0.25μm) |
| Contact Type | Full Bellows |
| Color | Blue |
| Flange Feature | Side Mount Opening, Unthreaded, 0.125" (3.18mm) Dia |
| Operating Temperature | -65°C ~ 125°C |
| Material - Insulation | Polybutylene Terephthalate (PBT) |
| Read Out | Dual |
