MDT320E02001

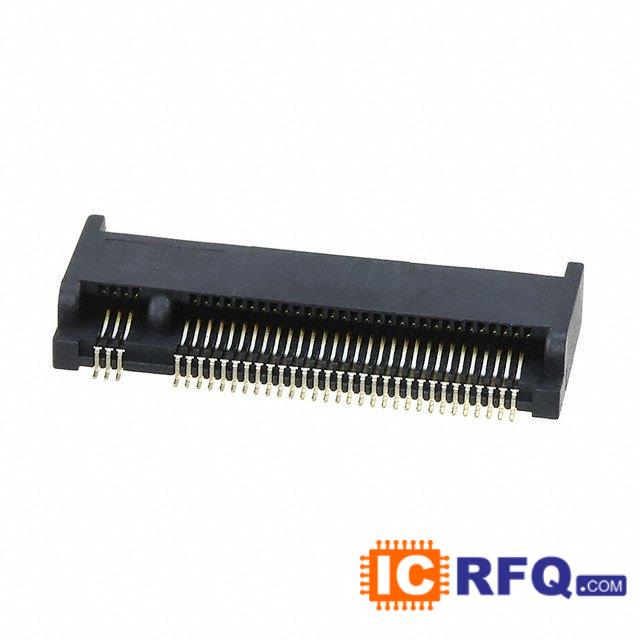

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | MDT320E02001 |
|---|---|
| Manufacturer | Amphenol Commercial Products |
| Description | M.2 PCIE RECEPTACLE 67P SMT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| MDT320E02001 Price |  |
Technical Specifications of MDT320E02001
| Datasheet |  MDT320E02001 datasheet |
|---|---|
| Product Photos | MDT320x0x001 |
| 3D Model | MDT320E0x001.igsMDT320E0x001.stp |
| Standard Package | 900 |
| Category | Connectors, Interconnects |
| Family | Card Edge Connectors - Edgeboard Connectors |
| Series | M.2 |
| Packaging | Tape & Reel (TR) |
| Card Type | - |
| Gender | Female |
| Number of Positions/Bay/Row | - |
| Number of Positions | 67 |
| Card Thickness | - |
| Number of Rows | 2 |
| Pitch | 0.020" (0.50mm) |
| Features | Board Lock, Keyed |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | 15μin (0.38μm) |
| Contact Type | - |
| Color | Black |
| Flange Feature | - |
| Operating Temperature | -40°C ~ 80°C |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Read Out | Dual |
