A8D35DS29C2

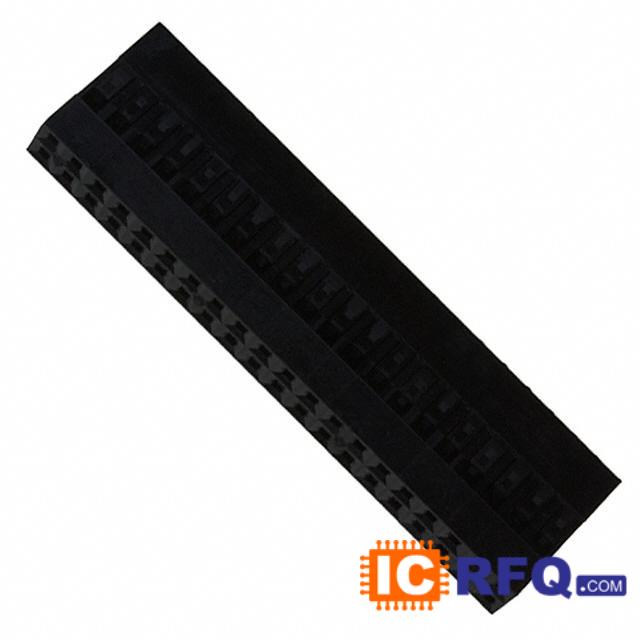

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | A8D35DS29C2 |
|---|---|
| Manufacturer | TE Connectivity AMP Connectors |
| Description | CONN CARD EDGE 35POS GOLD |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| A8D35DS29C2 Price |  |
Technical Specifications of A8D35DS29C2
| Datasheet |  A8D35DS29C2 datasheet |
|---|---|
| Standard Package | 500 |
| Category | Connectors, Interconnects |
| Family | Card Edge Connectors - Edgeboard Connectors |
| Series | - |
| Packaging | Bulk |
| Card Type | Non Specified - Dual Edge |
| Gender | Female |
| Number of Positions/Bay/Row | - |
| Number of Positions | 70 |
| Card Thickness | 0.054" ~ 0.071" (1.37mm ~ 1.80mm) |
| Number of Rows | 2 |
| Pitch | 0.100" (2.54mm) |
| Features | - |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | 30μin (0.76μm) |
| Contact Type | - |
| Color | Black |
| Flange Feature | - |
| Operating Temperature | -55°C ~ 125°C |
| Material - Insulation | Thermoplastic, Glass Filled |
| Read Out | Dual |
| Other Names | 1-1437270-3 1-1437270-3-ND |
