HMC49DREH-S93

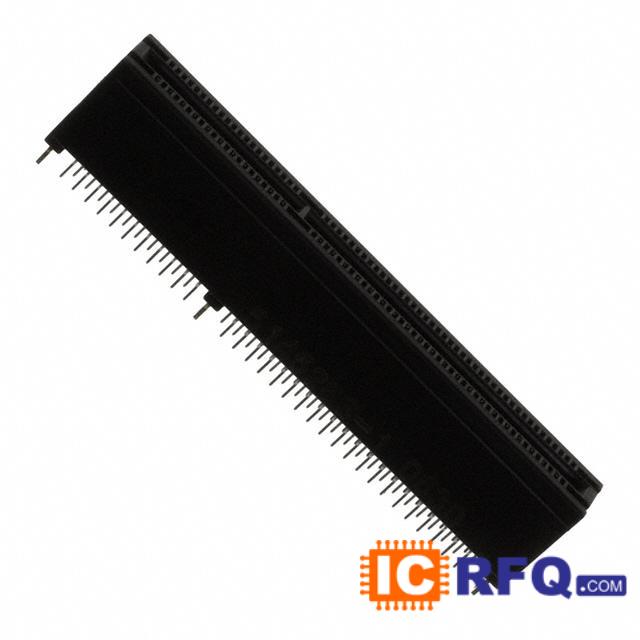

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | HMC49DREH-S93 |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN EDGECARD 98POS .100 EYELET |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| HMC49DREH-S93 Price |  |
Technical Specifications of HMC49DREH-S93
| Datasheet |  HMC49DREH-S93 datasheet |
|---|---|
| Standard Package | 1 |
| Category | Connectors, Interconnects |
| Family | Card Edge Connectors - Edgeboard Connectors |
| Series | - |
| Packaging | Tray |
| Card Type | Non Specified - Dual Edge |
| Gender | Female |
| Number of Positions/Bay/Row | 49 |
| Number of Positions | 98 |
| Card Thickness | 0.093" (2.36mm) |
| Number of Rows | 2 |
| Pitch | 0.100" (2.54mm) |
| Features | - |
| Mounting Type | Panel Mount |
| Termination | Solder Eyelet(s) |
| Contact Material | Beryllium Copper |
| Contact Finish | Gold |
| Contact Finish Thickness | 30μin (0.76μm) |
| Contact Type | Full Bellows |
| Color | Blue |
| Flange Feature | Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia |
| Operating Temperature | -65°C ~ 125°C |
| Material - Insulation | Polybutylene Terephthalate (PBT) |
| Read Out | Dual |
