9-146465-0

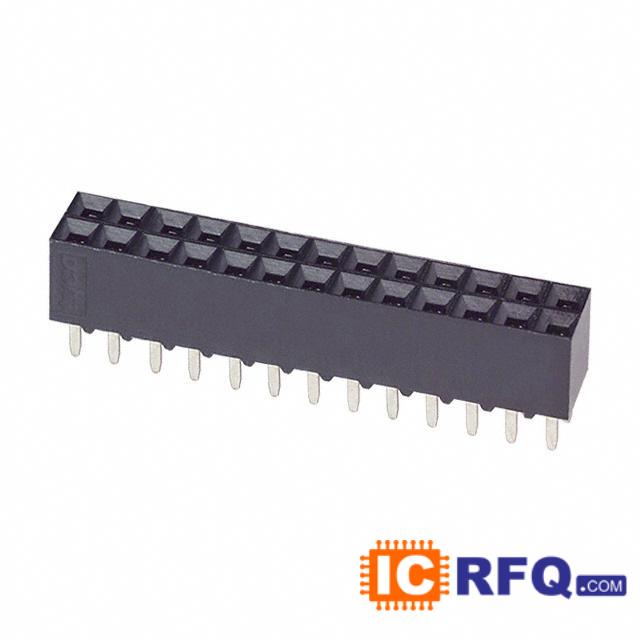

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | 9-146465-0 |
|---|---|
| Manufacturer | TE Connectivity AMP Connectors |
| Description | CONN HEADER 40POS .100" STACKER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| 9-146465-0 Price |  |
Technical Specifications of 9-146465-0
| Datasheet |  9-146465-0 datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Rectangular - Board to Board Connectors - Board Spacers, Stackers |
| Manufacturer | TE-Connectivity-AMP-Connectors |
| Series | AMPMODU Mod II |
| Packaging | Bulk |
| Number of Positions | 40 |
| Pitch | 0.100" (2.54mm) |
| Number of Rows | 1 |
| Row Spacing | - |
| Length - Overall | 0.930" (23.62mm) |
| Length - Post (Mating) | 0.120" (3.05mm) |
| Length - Stack Height | 0.700" (17.78mm) |
| Length - Tail | 0.110" (2.79mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Contact Finish - Post (Mating) | Tin |
| Contact Finish Thickness - Post (Mating) | 100μin (2.54μm) |
| Color | Black |
