2-146480-5

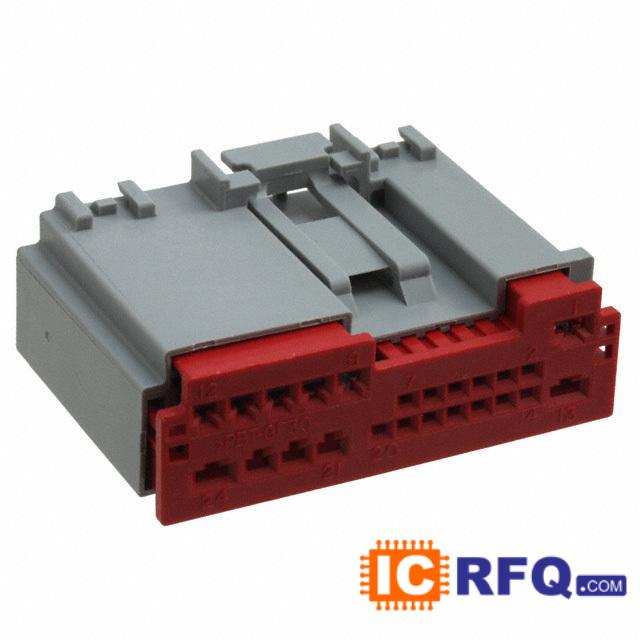

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | 2-146480-5 |
|---|---|
| Manufacturer | TE Connectivity AMP Connectors |
| Description | 25 MODII HDR SRST UNSHRD STKG |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| 2-146480-5 Price |  |
Technical Specifications of 2-146480-5
| Datasheet |  2-146480-5 datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Rectangular - Board to Board Connectors - Board Spacers, Stackers |
| Manufacturer | TE-Connectivity-AMP-Connectors |
| Series | AMPMODU Mod II |
| Packaging | Bulk |
| Number of Positions | 25 |
| Pitch | 0.100" (2.54mm) |
| Number of Rows | 1 |
| Row Spacing | - |
| Length - Overall | 1.430" (36.32mm) |
| Length - Post (Mating) | 0.120" (3.05mm) |
| Length - Stack Height | 1.200" (30.48mm) |
| Length - Tail | 0.110" (2.79mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Contact Finish - Post (Mating) | Tin-Lead |
| Contact Finish Thickness - Post (Mating) | 100μin (2.54μm) |
| Color | Black |
