8-146485-7

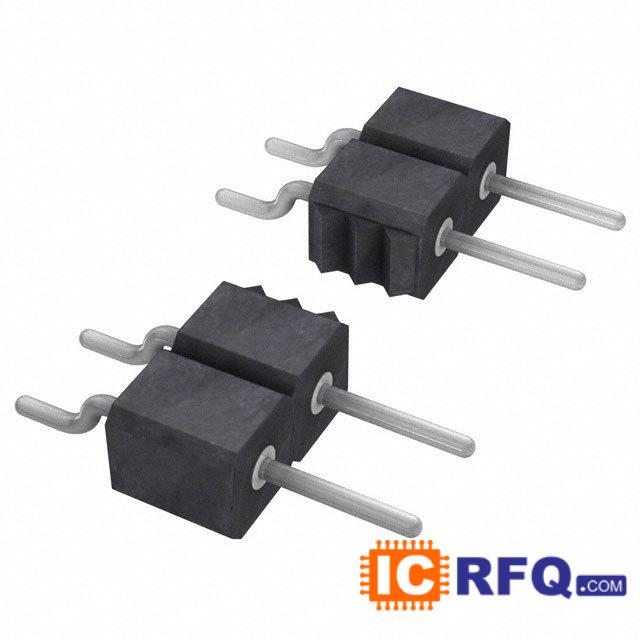

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | 8-146485-7 |
|---|---|
| Manufacturer | TE Connectivity AMP Connectors |
| Description | CONN HEADR 74POS .100" DUAL ROW |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| 8-146485-7 Price |  |
Technical Specifications of 8-146485-7
| Datasheet |  8-146485-7 datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Rectangular - Board to Board Connectors - Board Spacers, Stackers |
| Manufacturer | TE-Connectivity-AMP-Connectors |
| Series | AMPMODU Mod II |
| Packaging | Bulk |
| Number of Positions | 74 |
| Pitch | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing | 0.100" (2.54mm) |
| Length - Overall | 0.474" (12.04mm) |
| Length - Post (Mating) | 0.114" (2.90mm) |
| Length - Stack Height | 0.250" (6.35mm) |
| Length - Tail | 0.110" (2.79mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Contact Finish - Post (Mating) | Tin |
| Contact Finish Thickness - Post (Mating) | 100μin (2.54μm) |
| Color | Black |
