3-146507-8

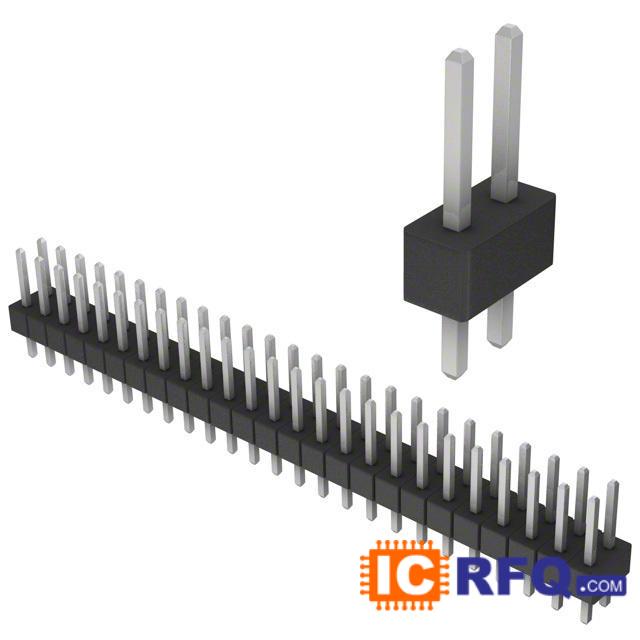

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | 3-146507-8 |
|---|---|
| Manufacturer | TE Connectivity AMP Connectors |
| Description | 76 MODII HDR DRST UNSHRD STKG |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| 3-146507-8 Price |  |
Technical Specifications of 3-146507-8
| Datasheet |  3-146507-8 datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Rectangular - Board to Board Connectors - Board Spacers, Stackers |
| Manufacturer | TE-Connectivity-AMP-Connectors |
| Series | AMPMODU Mod II |
| Packaging | Bulk |
| Number of Positions | 76 |
| Pitch | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing | 0.100" (2.54mm) |
| Length - Overall | 1.330" (33.78mm) |
| Length - Post (Mating) | 0.330" (8.38mm) |
| Length - Stack Height | 0.670" (17.02mm) |
| Length - Tail | 0.330" (8.38mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Contact Finish - Post (Mating) | Gold |
| Contact Finish Thickness - Post (Mating) | 15μin (0.38μm) |
| Color | Black |
