TD-108-G-A

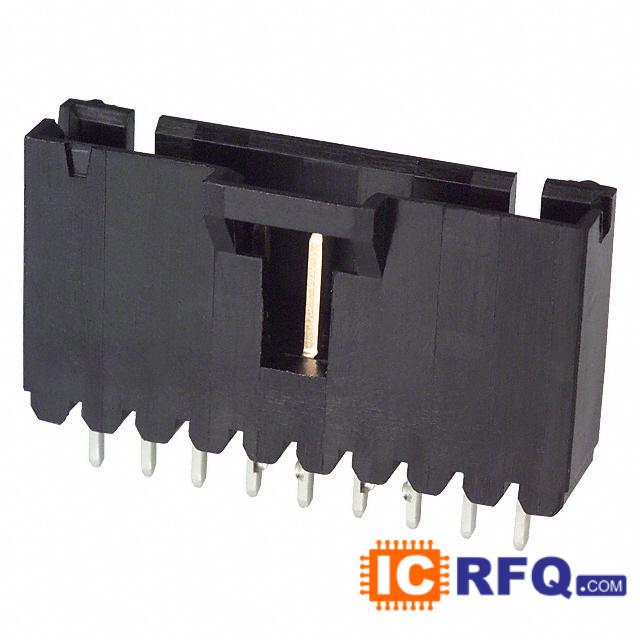

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | TD-108-G-A |
|---|---|
| Manufacturer | Samtec Inc. |
| Description | CONN HEADER .100 16POS DL AU PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| TD-108-G-A Price |  |
Technical Specifications of TD-108-G-A
| Datasheet |  TD-108-G-A datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Rectangular - Board to Board Connectors - Headers, Male Pins |
| Manufacturer | Samtec-Inc. |
| Series | TD |
| Packaging | Bulk |
| Connector Type | Unshrouded |
| Number of Positions | 16 |
| Number of Positions Loaded | All |
| Pitch | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing | 0.100" (2.54mm) |
| Height Stacking (Mating) | - |
| Molding Height Above Board | 0.100" (2.54mm) |
| Contact Mating Length | 0.166" (4.22mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Contact Finish | Gold |
| Contact Finish Thickness | 20μin (0.51μm) |
| Features | - |
| Color | Black |
