CLE-115-01-G-DV

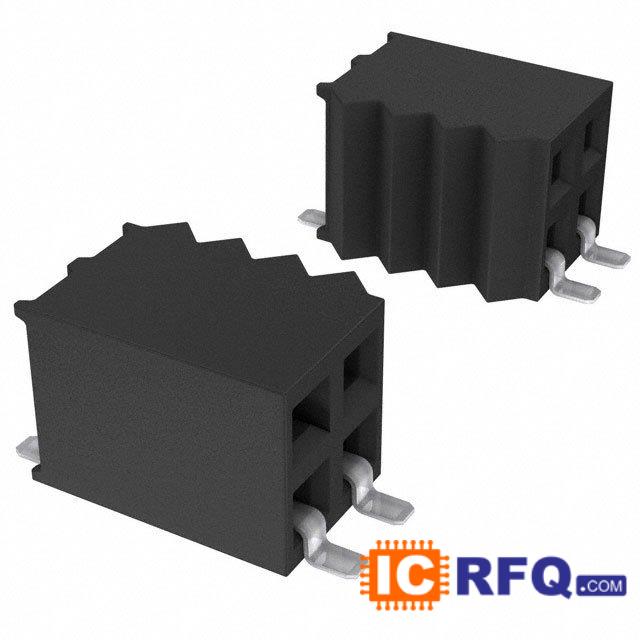

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | CLE-115-01-G-DV |
|---|---|
| Manufacturer | Samtec Inc. |
| Description | 30 Position Receptacle, Pass Through Connector Gold 0.031" (0.80mm) Surface Mount |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| CLE-115-01-G-DV Price |  |
Technical Specifications of CLE-115-01-G-DV
| Datasheet |  CLE-115-01-G-DV datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Rectangular - Board to Board Connectors - Headers, Receptacles, Female Sockets |
| Manufacturer | Samtec-Inc. |
| Series | CLE |
| Packaging | Bulk |
| Connector Type | Receptacle, Pass Through |
| Number of Positions | 30 |
| Number of Positions Loaded | All |
| Pitch | 0.031" (0.80mm) |
| Number of Rows | 2 |
| Row Spacing | 0.047" (1.20mm) |
| Height Stacking (Mating) | - |
| Height Above Board | 0.130" (3.30mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Contact Finish | Gold |
| Contact Finish Thickness | 10μin (0.25μm) |
| Features | - |
| Color | Black |
