BCS-125-L-D-TE

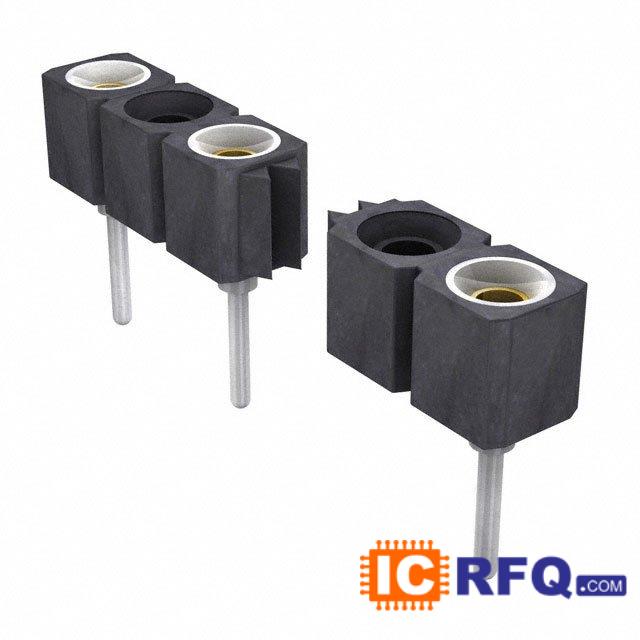

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | BCS-125-L-D-TE |
|---|---|
| Manufacturer | Samtec Inc. |
| Description | 50 Position Receptacle Connector Gold 0.100" (2.54mm) Through Hole |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| BCS-125-L-D-TE Price |  |
Technical Specifications of BCS-125-L-D-TE
| Datasheet |  BCS-125-L-D-TE datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Rectangular - Board to Board Connectors - Headers, Receptacles, Female Sockets |
| Manufacturer | Samtec-Inc. |
| Series | Tiger Claw? BCS |
| Packaging | Tube |
| Connector Type | Receptacle |
| Number of Positions | 50 |
| Number of Positions Loaded | All |
| Pitch | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing | 0.100" (2.54mm) |
| Height Stacking (Mating) | - |
| Height Above Board | 0.290" (7.37mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Contact Finish | Gold |
| Contact Finish Thickness | 10μin (0.25μm) |
| Features | - |
| Color | Black |
