BCS-129-L-S-HE

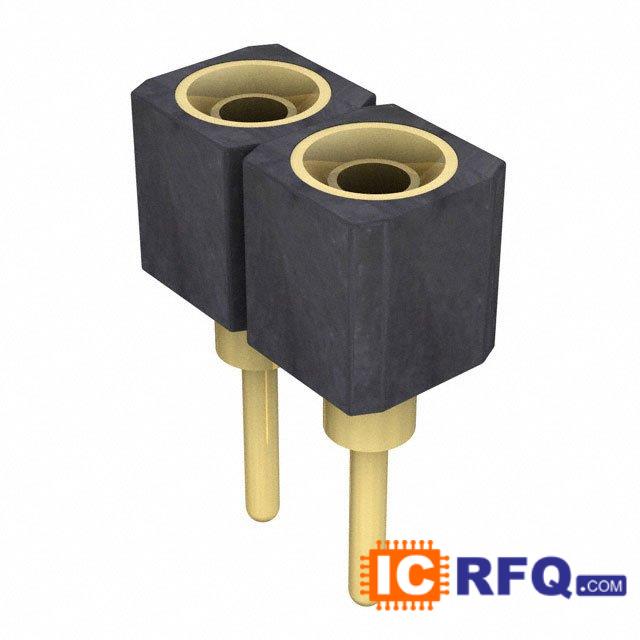

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | BCS-129-L-S-HE |
|---|---|
| Manufacturer | Samtec Inc. |
| Description | 29 Position Receptacle Connector Gold 0.100" (2.54mm) Through Hole, Right Angle |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| BCS-129-L-S-HE Price |  |
Technical Specifications of BCS-129-L-S-HE
| Datasheet |  BCS-129-L-S-HE datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Rectangular - Board to Board Connectors - Headers, Receptacles, Female Sockets |
| Manufacturer | Samtec-Inc. |
| Series | Tiger Claw? BCS |
| Packaging | Tube |
| Connector Type | Receptacle |
| Number of Positions | 29 |
| Number of Positions Loaded | All |
| Pitch | 0.100" (2.54mm) |
| Number of Rows | 1 |
| Row Spacing | - |
| Height Stacking (Mating) | - |
| Height Above Board | 0.125" (3.17mm) |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Contact Finish | Gold |
| Contact Finish Thickness | 10μin (0.25μm) |
| Features | - |
| Color | Black |
