0905842326

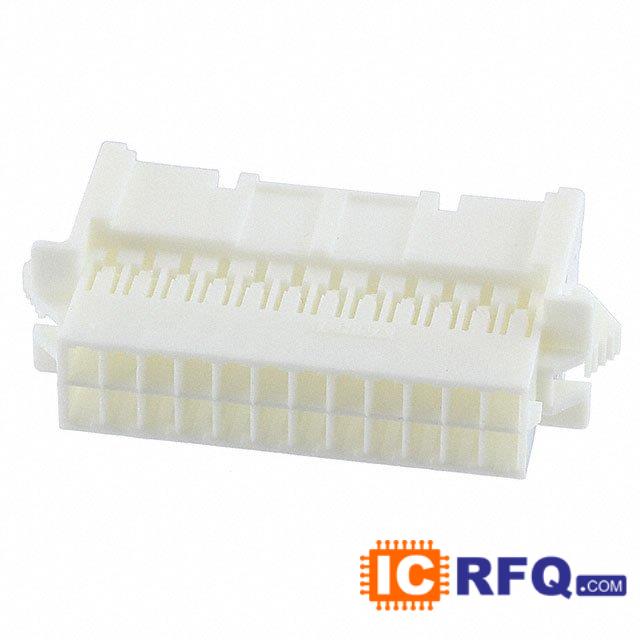

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | 0905842326 |
|---|---|
| Manufacturer | Molex, LLC |
| Description | 26 Position Ribbon Cable, DIP Header Connector White IDC 26-28 AWG, Stranded Through Hole, Press-Fit |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| 0905842326 Price |  |
Technical Specifications of 0905842326
| Datasheet |  0905842326 datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Rectangular Connectors - Board In, Direct Wire to Board |
| Manufacturer | Molex,-LLC |
| Series | Picoflex? 90584 |
| Packaging | Tube |
| Connector Type | Ribbon Cable, DIP Header |
| Number of Positions | 26 |
| Cable Pitch | 0.050" (1.27mm) |
| Board-Side Pitch | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing | 0.100" (2.54mm) |
| Mounting Type | Through Hole, Press-Fit |
| Cable Termination | IDC |
| Wire Gauge | 26-28 AWG, Stranded |
| Features | Closed End |
| Contact Finish | Tin |
| Contact Finish Thickness | 80μin (2.03μm) |
| Color | White |
| Number of Positions Loaded | All |
