PEC05SGAN

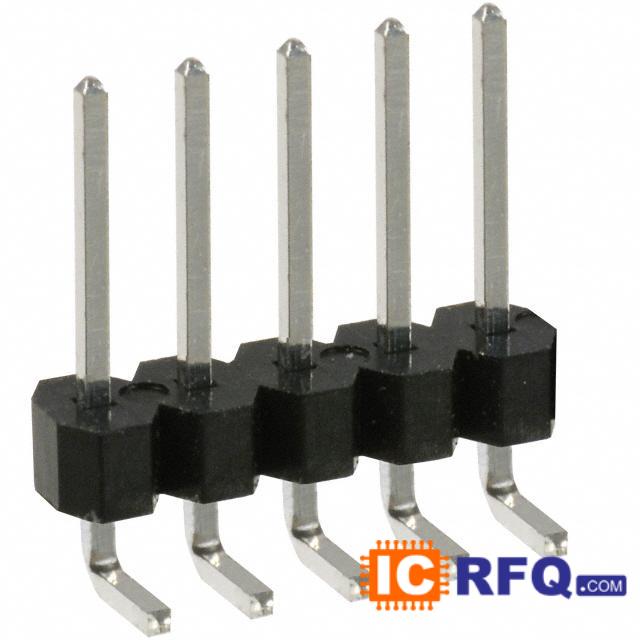

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | PEC05SGAN |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | 5 Positions Header, Unshrouded, Breakaway Connector 0.100" (2.54mm) Through Hole, Right Angle Tin |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| PEC05SGAN Price |  |
Technical Specifications of PEC05SGAN
| Datasheet |  PEC05SGAN datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Rectangular Connectors - Headers, Male Pins |
| Manufacturer | Sullins Connector Solutions |
| Series | - |
| Packaging | Bulk |
| Contact Type | Male Pin |
| Connector Type | Header, Unshrouded, Breakaway |
| Number of Positions | 5 |
| Number of Positions Loaded | All |
| Pitch | 0.100" (2.54mm) |
| Number of Rows | 1 |
| Row Spacing | - |
| Contact Mating Length | 0.318" (8.08mm) |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | - |
| Features | - |
| Contact Finish | Tin |
| Contact Finish Thickness | 100μin (2.54μm) |
| Color | Black |
