TLW-109-05-T-S

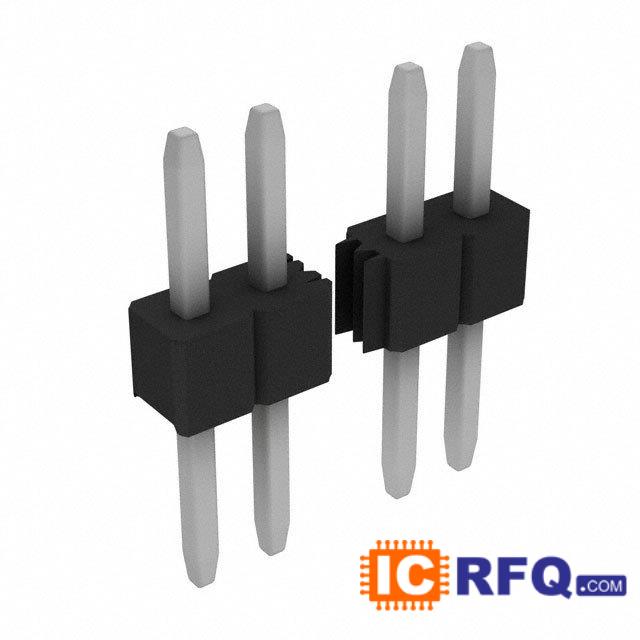

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | TLW-109-05-T-S |
|---|---|
| Manufacturer | Samtec Inc. |
| Description | 9 Positions Header, Unshrouded Connector 0.100" (2.54mm) Through Hole Tin |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| TLW-109-05-T-S Price |  |
Technical Specifications of TLW-109-05-T-S
| Datasheet |  TLW-109-05-T-S datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Rectangular Connectors - Headers, Male Pins |
| Manufacturer | Samtec Inc. |
| Series | Flex Stack, TLW |
| Packaging | Bulk |
| Contact Type | Male Pin |
| Connector Type | Header, Unshrouded |
| Number of Positions | 9 |
| Number of Positions Loaded | All |
| Pitch | 0.100" (2.54mm) |
| Number of Rows | 1 |
| Row Spacing | - |
| Contact Mating Length | 0.105" (2.67mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | - |
| Features | - |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
| Color | Black |
