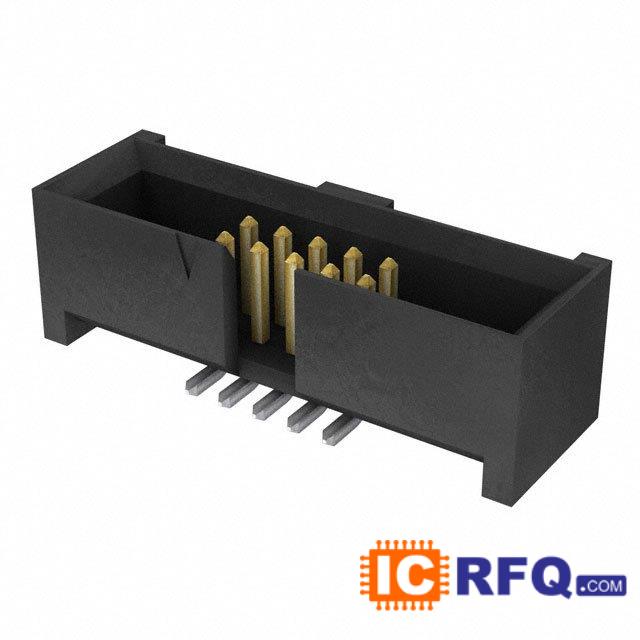

ESHF-105-01-L-D-SM
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | ESHF-105-01-L-D-SM |
|---|---|
| Manufacturer | Samtec Inc. |
| Description | 10 Positions Header, Shrouded Connector 0.050" (1.27mm) Surface Mount Gold |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| ESHF-105-01-L-D-SM Price |  |
Technical Specifications of ESHF-105-01-L-D-SM
| Datasheet |  ESHF-105-01-L-D-SM datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Rectangular Connectors - Headers, Male Pins |
| Manufacturer | Samtec Inc. |
| Series | ESHF |
| Packaging | Tube |
| Contact Type | Male Pin |
| Connector Type | Header, Shrouded |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Pitch | 0.050" (1.27mm) |
| Number of Rows | 2 |
| Row Spacing | 0.050" (1.27mm) |
| Contact Mating Length | - |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | - |
| Features | - |
| Contact Finish | Gold |
| Contact Finish Thickness | 10μin (0.25μm) |
| Color | Black |
