4-146255-0

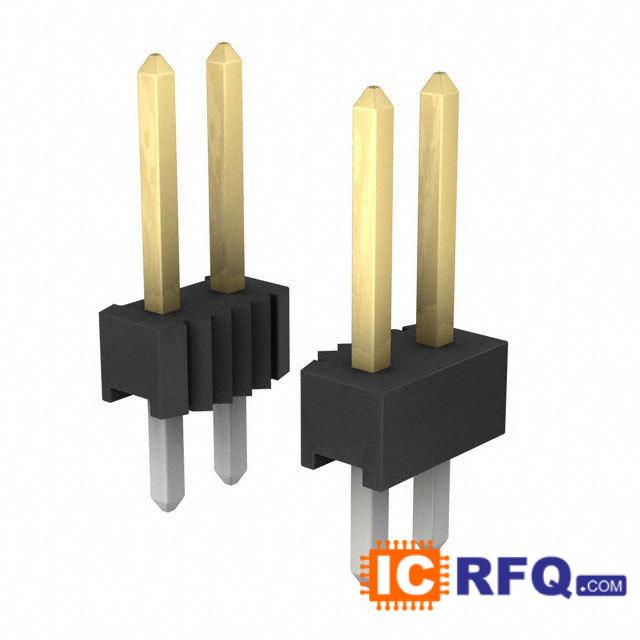

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | 4-146255-0 |
|---|---|
| Manufacturer | TE Connectivity AMP Connectors |
| Description | 80 Positions Header, Unshrouded, Breakaway Connector 0.100" (2.54mm) Through Hole Gold |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| 4-146255-0 Price |  |
Technical Specifications of 4-146255-0
| Datasheet |  4-146255-0 datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Rectangular Connectors - Headers, Male Pins |
| Manufacturer | TE Connectivity AMP Connectors |
| Series | AMPMODU Mod II |
| Packaging | Bulk |
| Contact Type | Male Pin |
| Connector Type | Header, Unshrouded, Breakaway |
| Number of Positions | 80 |
| Number of Positions Loaded | All |
| Pitch | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing | 0.100" (2.54mm) |
| Contact Mating Length | 0.230" (5.84mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | - |
| Features | - |
| Contact Finish | Gold |
| Contact Finish Thickness | 5μin (0.127μm) |
| Color | Black |
