0705550082

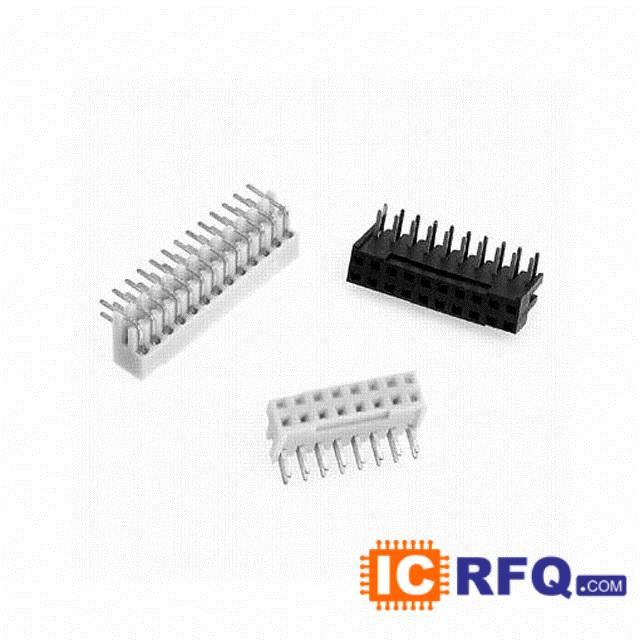

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | 0705550082 |
|---|---|
| Manufacturer | Molex, LLC |
| Description | 13 Positions Header, Shrouded Connector 0.100" (2.54mm) Through Hole, Right Angle Gold |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| 0705550082 Price |  |
Technical Specifications of 0705550082
| Datasheet |  0705550082 datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Rectangular Connectors - Headers, Male Pins |
| Manufacturer | Molex, LLC |
| Series | C-Grid? SL? 70555 |
| Packaging | Tube |
| Contact Type | Male Pin |
| Connector Type | Header, Shrouded |
| Number of Positions | 13 |
| Number of Positions Loaded | All |
| Pitch | 0.100" (2.54mm) |
| Number of Rows | 1 |
| Row Spacing | - |
| Contact Mating Length | 0.240" (6.10mm) |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Features | Board Guide |
| Contact Finish | Gold |
| Contact Finish Thickness | 30μin (0.76μm) |
| Color | Black |
