159120-2002

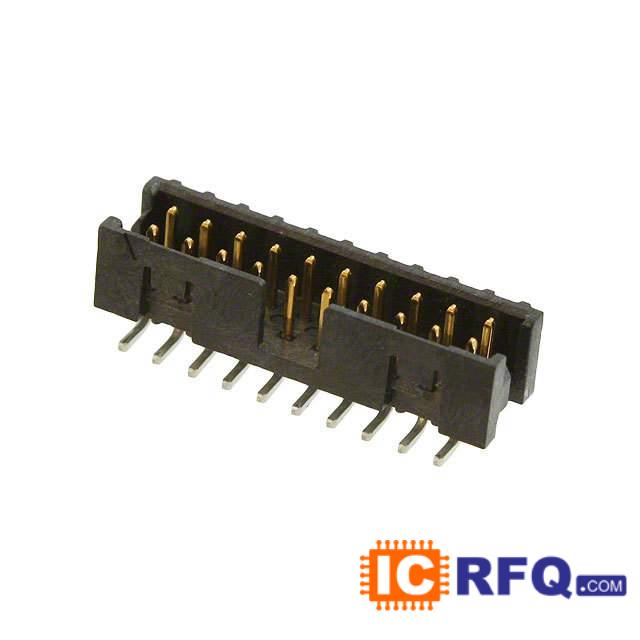

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | 159120-2002 |
|---|---|
| Manufacturer | 3M |
| Description | 20 Positions Header, Shrouded Connector 0.079" (2.00mm) Surface Mount Gold |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| 159120-2002 Price |  |
Technical Specifications of 159120-2002
| Datasheet |  159120-2002 datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Rectangular Connectors - Headers, Male Pins |
| Manufacturer | 3M |
| Series | 159 |
| Packaging | Tape & Reel (TR) |
| Contact Type | Male Pin |
| Connector Type | Header, Shrouded |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Pitch | 0.079" (2.00mm) |
| Number of Rows | 2 |
| Row Spacing | 0.079" (2.00mm) |
| Contact Mating Length | 0.142" (3.61mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Detent Lock |
| Features | - |
| Contact Finish | Gold |
| Contact Finish Thickness | 30μin (0.76μm) |
| Color | Black |
