SQW-109-01-L-D-VS

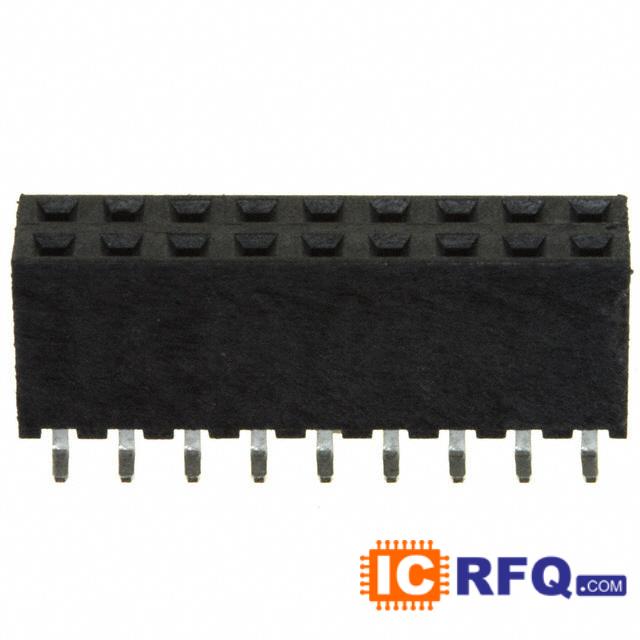

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | SQW-109-01-L-D-VS |
|---|---|
| Manufacturer | Samtec Inc. |
| Description | 18 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| SQW-109-01-L-D-VS Price |  |
Technical Specifications of SQW-109-01-L-D-VS
| Datasheet |  SQW-109-01-L-D-VS datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Rectangular Connectors - Headers, Receptacles, Female Sockets |
| Manufacturer | Samtec Inc. |
| Series | FleXYZ? SQW |
| Packaging | Tube |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Number of Positions | 18 |
| Number of Positions Loaded | All |
| Pitch | 0.079" (2.00mm) |
| Number of Rows | 2 |
| Row Spacing | 0.079" (2.00mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | - |
| Features | - |
| Contact Finish | Gold |
| Contact Finish Thickness | 10μin (0.25μm) |
| Color | Black |
