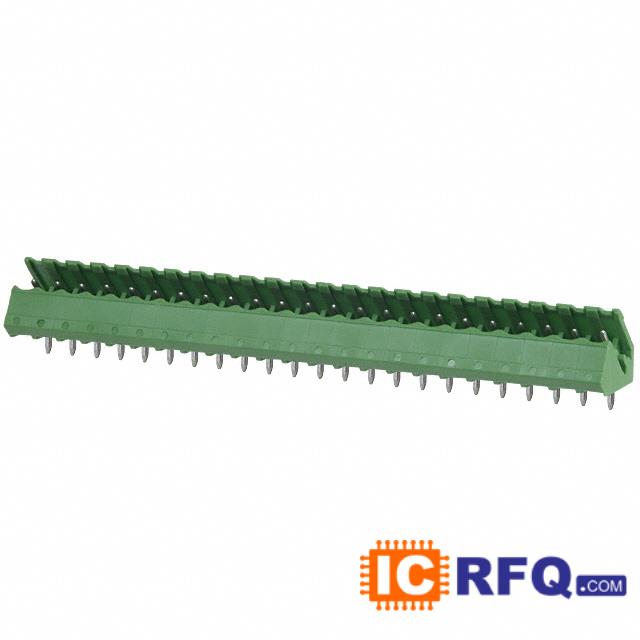

EDSTLZ990/23
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | EDSTLZ990/23 |
|---|---|
| Manufacturer | On Shore Technology Inc. |
| Description | 23 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 45° Through Hole |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| EDSTLZ990/23 Price |  |
Technical Specifications of EDSTLZ990/23
| Category | Connectors, Interconnects |
|---|---|
| Family | Terminal Blocks - Headers, Plugs and Sockets |
| Manufacturer | On Shore Technology Inc. |
| Series | EDSTLZ990 |
| Packaging | Bulk |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Number of Positions | 23 |
| Positions Per Level | 23 |
| Number of Levels | 1 |
| Pitch | 0.200" (5.08mm) |
| Header Orientation | 45° |
| Plug Wire Entry | - |
| Termination Style | Solder |
| Mounting Type | Through Hole |
| Current - IEC | - |
| Voltage - IEC | - |
| Current - UL | 15A |
| Voltage - UL | 300V |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm2 | - |
| Color | Green |
| Operating Temperature | -30°C ~ 105°C |
| Contact Mating Finish | - |
| Features | - |
