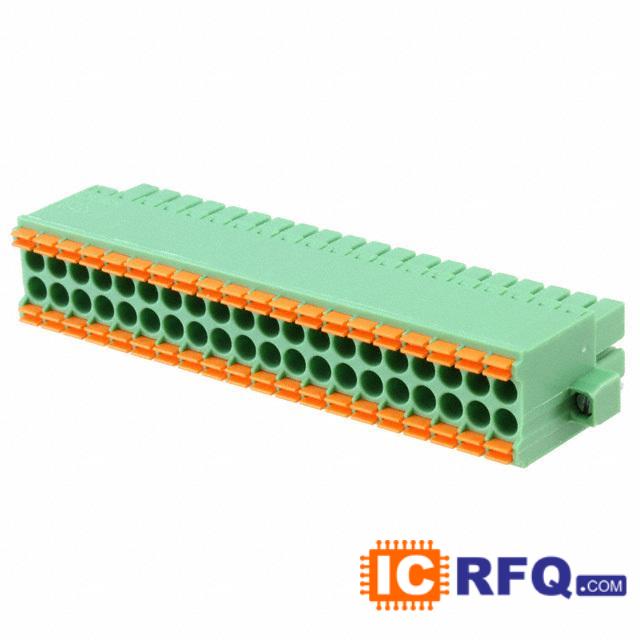

1790470
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | 1790470 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | 40 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| 1790470 Price |  |
Technical Specifications of 1790470
| Category | Connectors, Interconnects |
|---|---|
| Family | Terminal Blocks - Headers, Plugs and Sockets |
| Manufacturer | Phoenix Contact |
| Series | COMBICON DFMC |
| Packaging | Bulk |
| Type | Plug, Female Sockets |
| Number of Positions | 40 |
| Positions Per Level | 20 |
| Number of Levels | 2 |
| Pitch | 0.138" (3.50mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screwless - Push-In Spring |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 8A |
| Voltage - IEC | 250V |
| Current - UL | 8A |
| Voltage - UL | 150V |
| Wire Gauge or Range - AWG | 16-24 AWG |
| Wire Gauge or Range - mm2 | 0.2-1.5mm2 |
| Color | Green |
| Operating Temperature | - |
| Contact Mating Finish | Tin |
| Features | Mating Flange |
