OSTVX161201

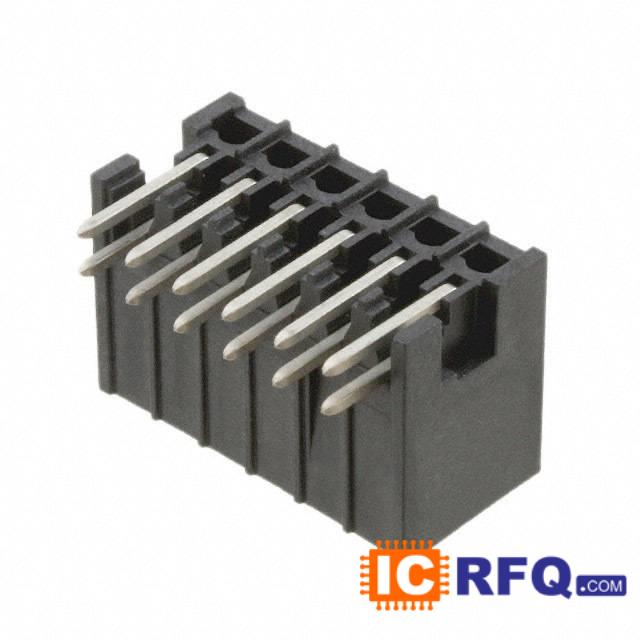

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | OSTVX161201 |
|---|---|
| Manufacturer | On Shore Technology Inc. |
| Description | 16 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| OSTVX161201 Price |  |
Technical Specifications of OSTVX161201
| Datasheet |  OSTVX161201 datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Terminal Blocks - Headers, Plugs and Sockets |
| Manufacturer | On Shore Technology Inc. |
| Series | OSTVX |
| Packaging | Bulk |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Number of Positions | 16 |
| Positions Per Level | 8 |
| Number of Levels | 2 |
| Pitch | 0.138" (3.50mm) |
| Header Orientation | 90°, Right Angle |
| Plug Wire Entry | - |
| Termination Style | Solder |
| Mounting Type | Through Hole |
| Current - IEC | - |
| Voltage - IEC | - |
| Current - UL | 7A |
| Voltage - UL | 150V |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm2 | - |
| Color | Black |
| Operating Temperature | -40°C ~ 115°C |
| Contact Mating Finish | Tin |
| Features | Mounting and Mating Flange |
