EDSTLZ976/2

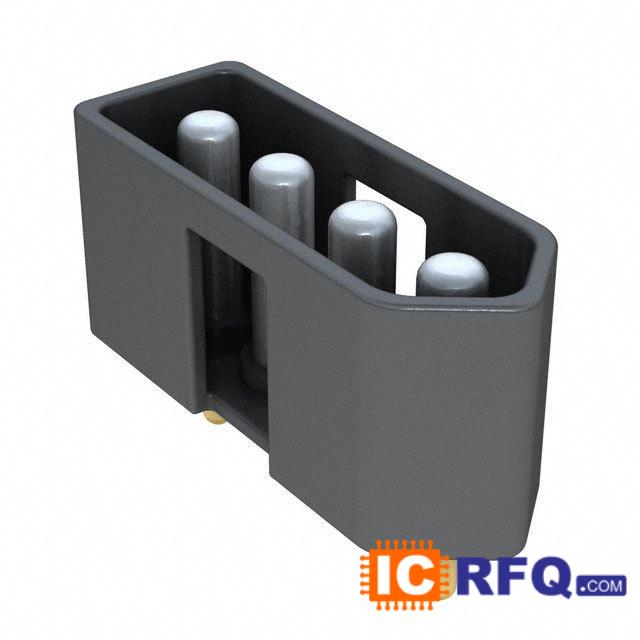

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | EDSTLZ976/2 |
|---|---|
| Manufacturer | On Shore Technology Inc. |
| Description | 4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| EDSTLZ976/2 Price |  |
Technical Specifications of EDSTLZ976/2
| Datasheet |  EDSTLZ976/2 datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Terminal Blocks - Headers, Plugs and Sockets |
| Manufacturer | On Shore Technology Inc. |
| Series | EDSTLZ976 |
| Packaging | Bulk |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Number of Positions | 4 |
| Positions Per Level | 2 |
| Number of Levels | 2 |
| Pitch | 0.200" (5.08mm) |
| Header Orientation | Vertical |
| Plug Wire Entry | - |
| Termination Style | Solder |
| Mounting Type | Through Hole |
| Current - IEC | - |
| Voltage - IEC | - |
| Current - UL | 15A |
| Voltage - UL | 300V |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm2 | - |
| Color | Green |
| Operating Temperature | -30°C ~ 105°C |
| Contact Mating Finish | - |
| Features | Mating Flange, Interlocking (Side) |
