20020521-U031B01LF

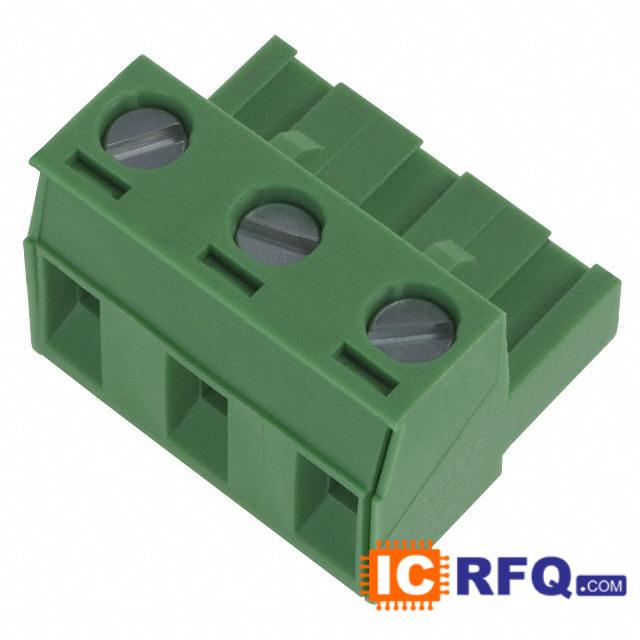

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | 20020521-U031B01LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | 3 Position Terminal Block Plug, Female Sockets 0.400" (10.16mm) 180° Free Hanging (In-Line) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| 20020521-U031B01LF Price |  |
Technical Specifications of 20020521-U031B01LF
| Datasheet |  20020521-U031B01LF datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Terminal Blocks - Headers, Plugs and Sockets |
| Manufacturer | Amphenol FCI |
| Series | 28-1016 |
| Packaging | Bulk |
| Type | Plug, Female Sockets |
| Number of Positions | 3 |
| Positions Per Level | 3 |
| Number of Levels | 1 |
| Pitch | 0.400" (10.16mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screw |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | - |
| Voltage - IEC | - |
| Current - UL | 55A |
| Voltage - UL | 300V |
| Wire Gauge or Range - AWG | 6-20 AWG |
| Wire Gauge or Range - mm2 | 6-16mm2 |
| Color | Green |
| Operating Temperature | -40°C ~ 115°C |
| Contact Mating Finish | Tin |
| Features | Mating Flange |
