1835478

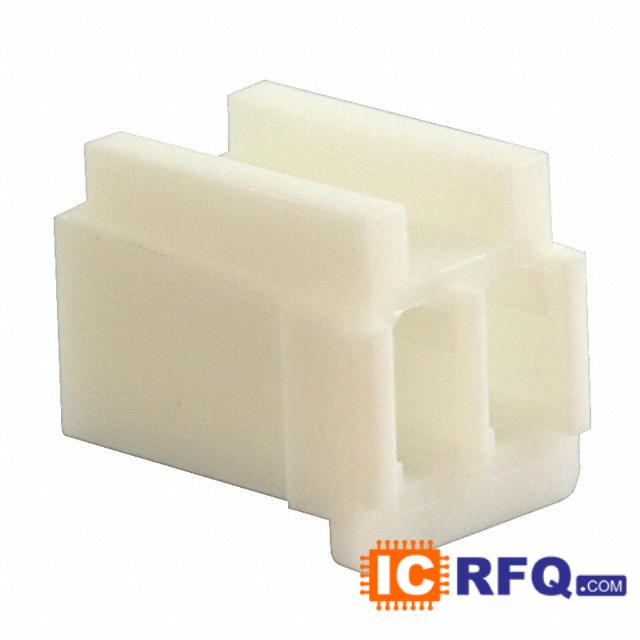

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | 1835478 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | 2 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 90° Free Hanging (In-Line) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| 1835478 Price |  |
Technical Specifications of 1835478
| Category | Connectors, Interconnects |
|---|---|
| Family | Terminal Blocks - Headers, Plugs and Sockets |
| Manufacturer | Phoenix Contact |
| Series | COMBICON MVSTBR |
| Packaging | Bulk |
| Type | Plug, Female Sockets |
| Number of Positions | 2 |
| Positions Per Level | 2 |
| Number of Levels | 1 |
| Pitch | 0.197" (5.00mm) |
| Header Orientation | - |
| Plug Wire Entry | 90° |
| Termination Style | Screw - Clamping Yoke (Tension Sleeve) |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 12A |
| Voltage - IEC | 630V |
| Current - UL | 15A |
| Voltage - UL | 300V |
| Wire Gauge or Range - AWG | 12-30 AWG |
| Wire Gauge or Range - mm2 | 0.2-2.5mm2 |
| Color | Green |
| Operating Temperature | - |
| Contact Mating Finish | Tin |
| Features | Mating Flange, Retention Latches (Wire Side) |
