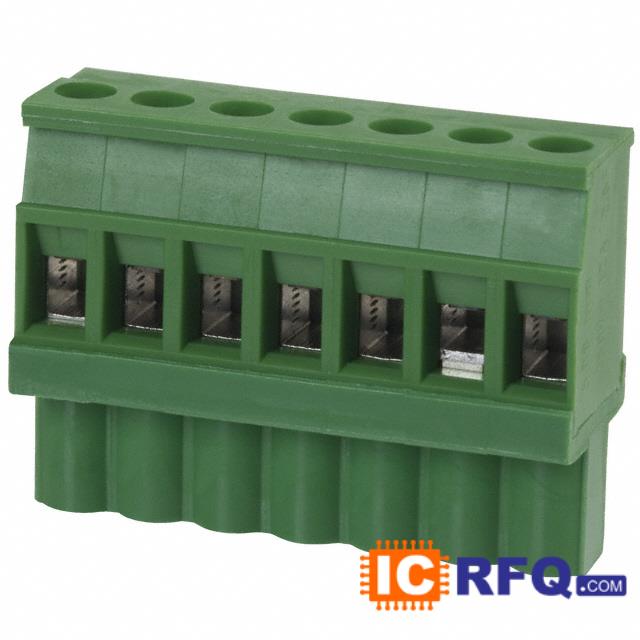

ED1110/7
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | ED1110/7 |
|---|---|
| Manufacturer | On Shore Technology Inc. |
| Description | 7 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 270° Free Hanging (In-Line) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| ED1110/7 Price |  |
Technical Specifications of ED1110/7
| Datasheet |  ED1110/7 datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Terminal Blocks - Headers, Plugs and Sockets |
| Manufacturer | On Shore Technology Inc. |
| Series | ED1110 |
| Packaging | Bulk |
| Type | Plug, Female Sockets |
| Number of Positions | 7 |
| Positions Per Level | 7 |
| Number of Levels | 1 |
| Pitch | 0.197" (5.00mm) |
| Header Orientation | - |
| Plug Wire Entry | 270° |
| Termination Style | Screw |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | - |
| Voltage - IEC | - |
| Current - UL | 15A |
| Voltage - UL | 300V |
| Wire Gauge or Range - AWG | 10-22 AWG |
| Wire Gauge or Range - mm2 | 2.5mm2 |
| Color | Green |
| Operating Temperature | -30°C ~ 105°C |
| Contact Mating Finish | - |
| Features | Retention Latches (Non-Wire Side) |
