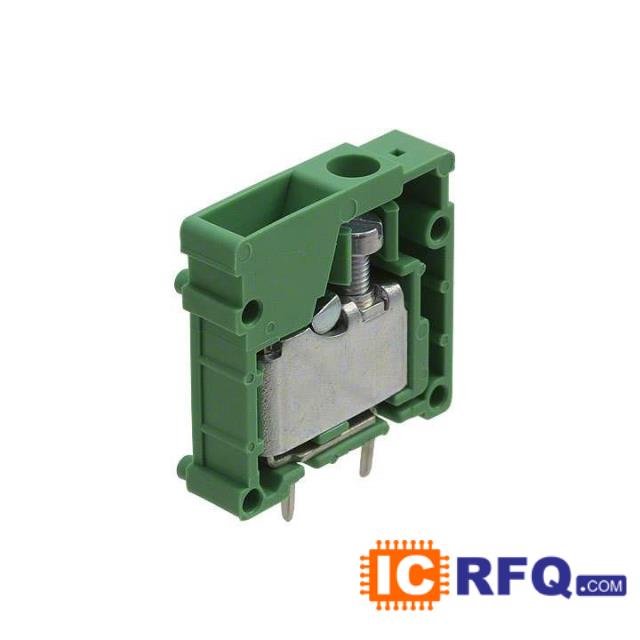

Technical Specifications of EL1M182G00
| Category | Connectors, Interconnects |
|---|
| Family | Terminal Blocks - Wire to Board |
|---|
| Manufacturer | Amphenol PCD |
|---|
| Series | EL1M |
|---|
| Packaging | Tray |
|---|
| Number of Levels | 1 |
|---|
| Positions Per Level | 18 |
|---|
| Pitch | 0.200" (5.08mm) |
|---|
| Mating Orientation | Horizontal with Board |
|---|
| Current | 20A |
|---|
| Voltage | 300V |
|---|
| Wire Gauge | 12-30 AWG |
|---|
| Mounting Type | Through Hole |
|---|
| Wire Termination | Screw - Rising Cage Clamp |
|---|
| Features | Interlocking (Side) |
|---|
| Color | Green |
|---|
| Operating Temperature | 105°C |
|---|
| Housing Material | Polyamide (PA), Nylon |
|---|
| Contact Material - Plating | Copper Alloy - Tin Plated |
|---|
| Clamp Material - Plating | Copper Alloy - Nickel Plated |
|---|
| Screw Material - Plating | Copper Alloy - Nickel Plated |
|---|
| Torque - Screw | 0.79 Nm (7.0 Lb-In) |
|---|
| Screw Thread | - |
|---|
We can supply Amphenol PCD part# EL1M182G00. Use the request quote form to request EL1M182G00 pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number EL1M182G00. The price and lead time for EL1M182G00 depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# EL1M182G00. We look forward to doing business with you.
