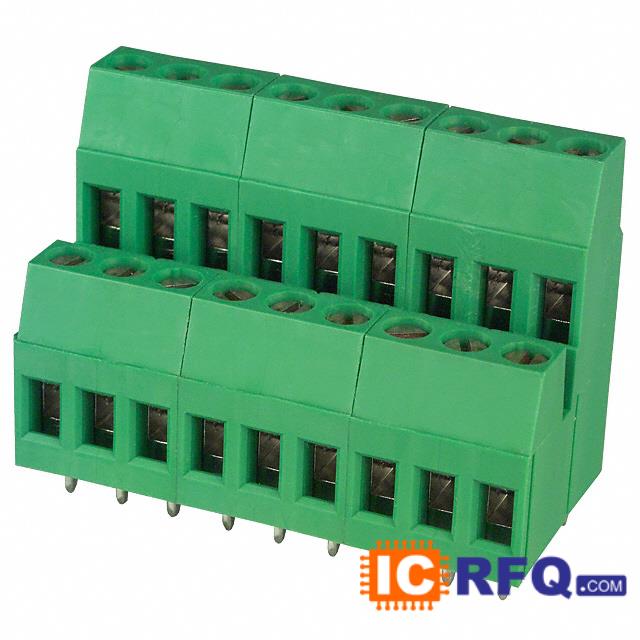

Technical Specifications of ED790/9
| Datasheet |  ED790/9 datasheet |
|---|
| Category | Connectors, Interconnects |
|---|
| Family | Terminal Blocks - Wire to Board |
|---|
| Manufacturer | On Shore Technology Inc. |
|---|
| Series | ED790 |
|---|
| Packaging | Bulk |
|---|
| Number of Levels | 2 |
|---|
| Positions Per Level | 9 |
|---|
| Pitch | 0.197" (5.00mm) |
|---|
| Mating Orientation | Horizontal with Board |
|---|
| Current | 20A |
|---|
| Voltage | 300V |
|---|
| Wire Gauge | 12-30 AWG |
|---|
| Mounting Type | Through Hole |
|---|
| Wire Termination | Screw - Rising Cage Clamp |
|---|
| Features | - |
|---|
| Color | Green |
|---|
| Operating Temperature | -30°C ~ 105°C |
|---|
| Housing Material | Polyamide (PA), Nylon |
|---|
| Contact Material - Plating | Brass |
|---|
| Clamp Material - Plating | Copper |
|---|
| Screw Material - Plating | - |
|---|
| Torque - Screw | 0.5 Nm (4.4 Lb-In) |
|---|
| Screw Thread | M3 |
|---|
We can supply On Shore Technology Inc. part# ED790/9. Use the request quote form to request ED790/9 pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ED790/9. The price and lead time for ED790/9 depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# ED790/9. We look forward to doing business with you.
