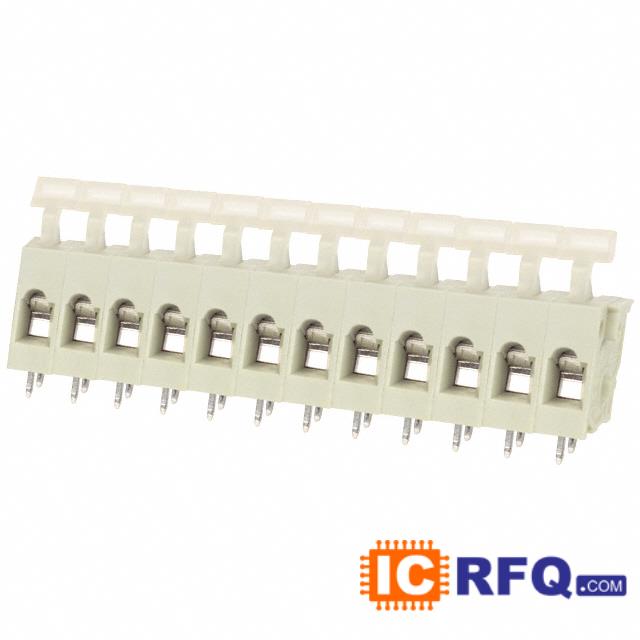

Technical Specifications of ED3101/12-WD
| Category | Connectors, Interconnects |
|---|
| Family | Terminal Blocks - Wire to Board |
|---|
| Manufacturer | On Shore Technology Inc. |
|---|
| Series | ED3101/WD |
|---|
| Packaging | Bulk |
|---|
| Number of Levels | 1 |
|---|
| Positions Per Level | 12 |
|---|
| Pitch | 0.197" (5.00mm) |
|---|
| Mating Orientation | Horizontal with Board |
|---|
| Current | 16A |
|---|
| Voltage | 300V |
|---|
| Wire Gauge | 14-28 AWG |
|---|
| Mounting Type | Through Hole |
|---|
| Wire Termination | Screwless - Leg Spring, Push-In Spring |
|---|
| Features | Interlocking (Side), Lever Actuated |
|---|
| Color | Gray, Slate |
|---|
| Operating Temperature | -30°C ~ 105°C |
|---|
| Housing Material | Polyamide (PA), Nylon |
|---|
| Contact Material - Plating | - |
|---|
| Clamp Material - Plating | Steel, Stainless |
|---|
| Screw Material - Plating | - |
|---|
| Torque - Screw | - |
|---|
| Screw Thread | - |
|---|
We can supply On Shore Technology Inc. part# ED3101/12-WD. Use the request quote form to request ED3101/12-WD pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ED3101/12-WD. The price and lead time for ED3101/12-WD depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# ED3101/12-WD. We look forward to doing business with you.
